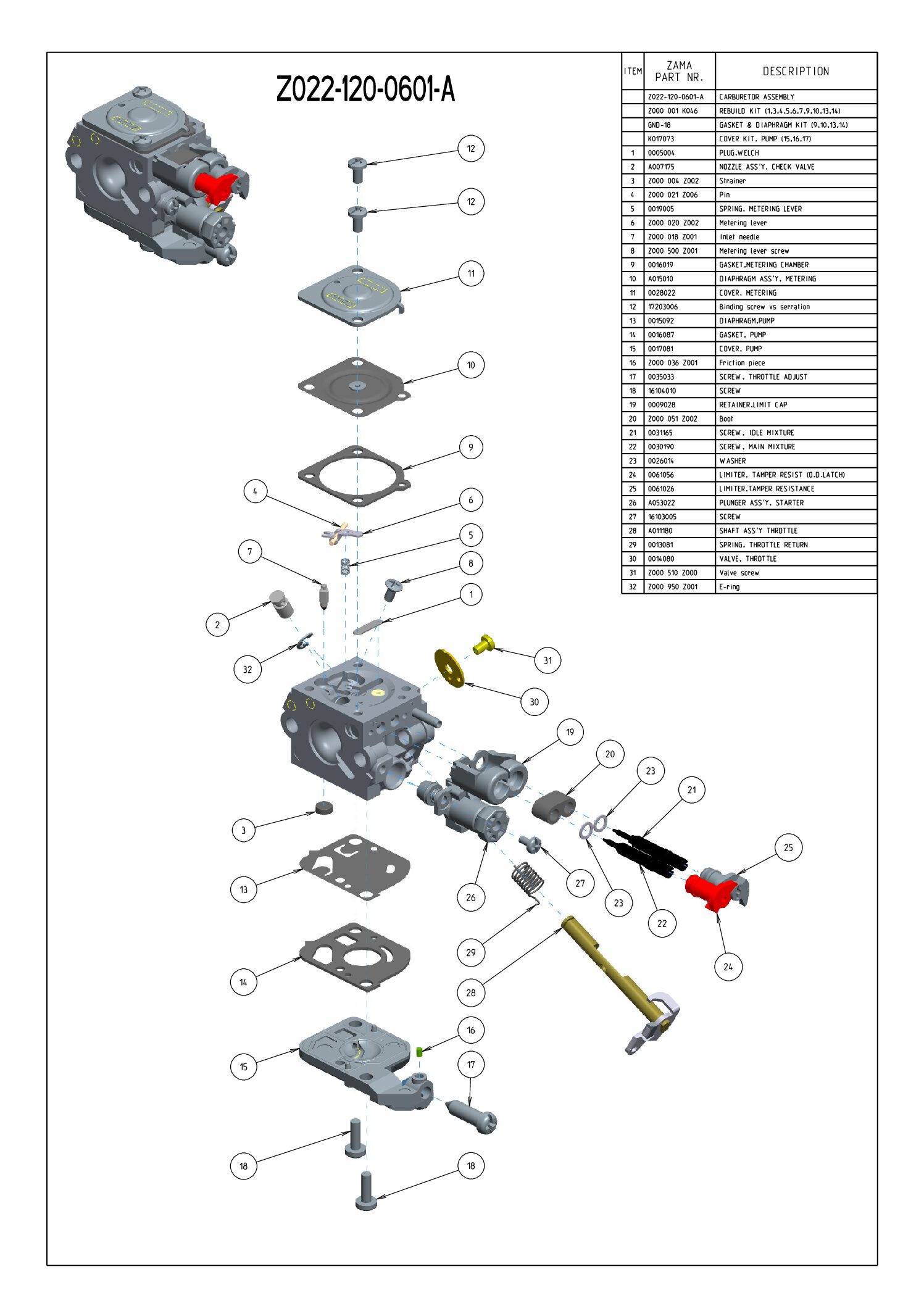

Z022-120-0601-A
| Ref | Part Name | Model Part | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Venturi |
8.0mm
This items is part of these Models: |
||||||||||
 |
REBUILD KIT |
Z000-001-K046
This items is part of these Models: |
|||||||||
 |
Gasket & Diaphragm Kit | |
GND-18
This items is part of these Models:
|
||||||||
 |
Cover Kit, Pump | ||||||||||
| 1 | PLUG,WELCH | |
5004
This items is part of these Models: |
||||||||
| 2 | Nozzle Ass'y, Check Valve |
A007175
This items is part of these Models: |
|||||||||
| 3 | Strainer | |
Z000 004 Z002
This items is part of these Models: |
||||||||
| 4 | Pin | |
Z000 021 Z006
This items is part of these Models:
|
||||||||
| 5 | Spring, Metering Lever | |
19005
|
||||||||
| 6 | Metering lever | |
Z000 020 Z002
|
||||||||
| 7 | Inlet needle | |
Z000 018 Z001
This items is part of these Models: |
||||||||
| 8 | Metering lever screw |
Z000 500 Z001
|
|||||||||
| 9 | GASKET,METERING CHAMBER | |
16019
This items is part of these Models: |
||||||||
| 10 | Diaphragm Ass'y, Metering | |
A015010
This items is part of these Models: |
||||||||
| 11 | Cover, Metering |
28022
This items is part of these Models: |
|||||||||
| 12 | Binding screw vs serration |
17203006
This items is part of these Models: |
|||||||||
| 13 | DIAPHRAGM,PUMP | |
15092
This items is part of these Models: |
||||||||
| 14 | Gasket, Pump | |
16087
This items is part of these Models: |
||||||||
| 15 | Cover, Pump | |
17081
This items is part of these Models: |
||||||||
| 16 | Friction piece | |
Z000 036 Z001
This items is part of these Models: |
||||||||
| 17 | Screw, Throttle Adjust | |
35033
This items is part of these Models: |
||||||||
| 18 | SCREW |
16104010
This items is part of these Models: |
|||||||||
| 19 | RETAINER,LIMIT CAP |
9028
This items is part of these Models: |
|||||||||
| 20 | Boot |
Z000-051-Z002
This items is part of these Models: |
|||||||||
| 21 | Screw, Idle Mixture |
31165
This items is part of these Models: |
|||||||||
| 22 | Screw, Main Mixture |
30190
This items is part of these Models: |
|||||||||
| 23 | WASHER |
26014
This items is part of these Models: |
|||||||||
| 24 | LIMITER TAMPER RESIST (O.D.LATCH) |
61056
This items is part of these Models: |
|||||||||
| 25 | LIMITER,TAMPER RESISTANCE |
61026
This items is part of these Models: |
|||||||||
| 26 | Plunger Ass'y, Starter |
A053022
This items is part of these Models: |
|||||||||
| 27 | Screw |
16103005
This items is part of these Models: |
|||||||||
| 28 | Shaft Ass'y, Throttle |
A011180
This items is part of these Models: |
|||||||||
| 29 | Spring, Throttle Return |
13081
This items is part of these Models: |
|||||||||
| 30 | Valve, Throttle |
14080
This items is part of these Models: |
|||||||||
| 31 | Valve screw |
Z000 510 Z000
This items is part of these Models: |
|||||||||
| 32 | E-ring |
Z000-950-Z001
This items is part of these Models: |
