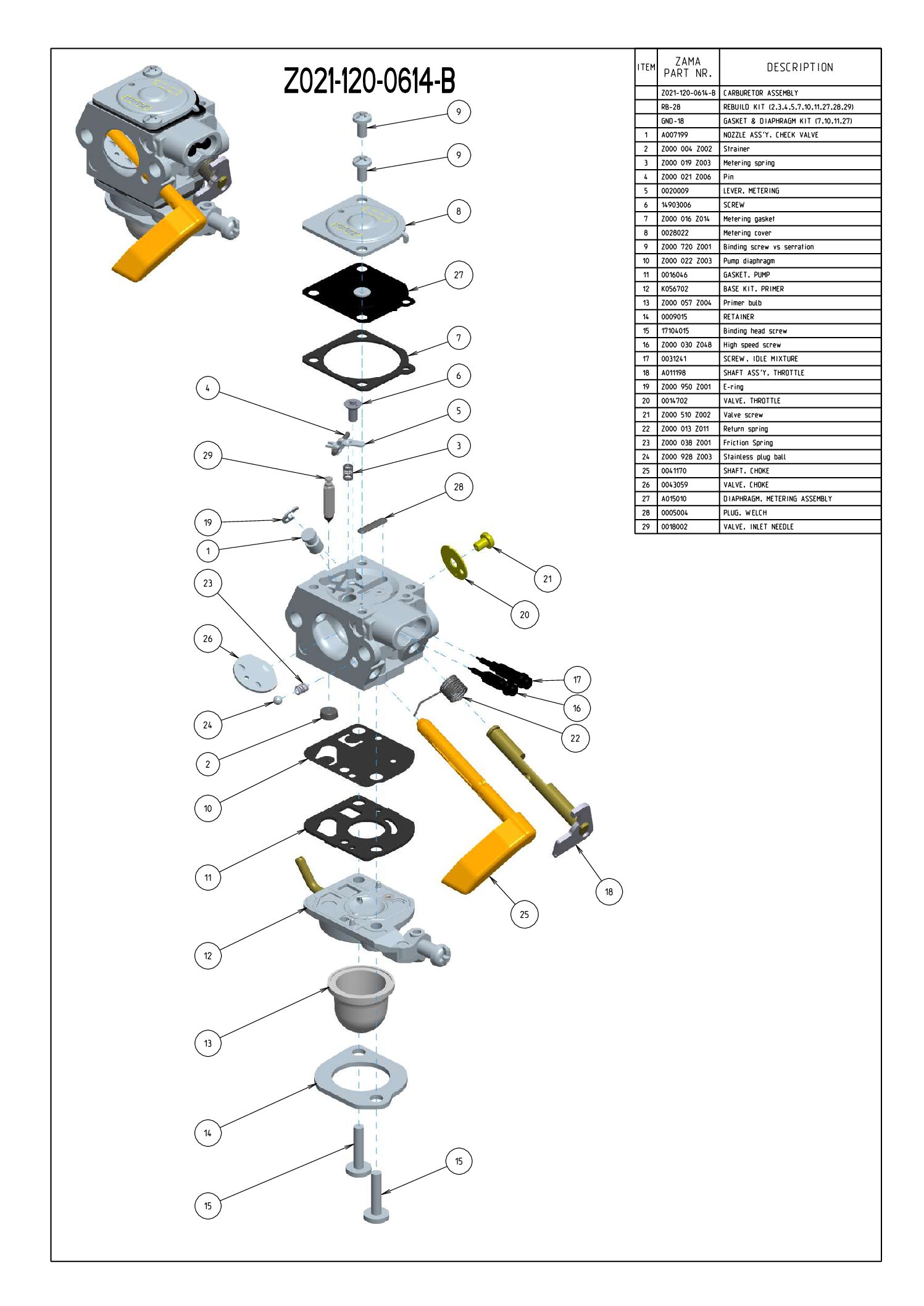

Ref |
Part Name |
|
Model Part |
|
VENTURI |
|
|
 |
Rebuild Kit |
|
|
 |
Gasket & Diaphragm Kit |
|
|
| 1 |
Nozzle Ass'y, Check Valve |
|
|
| 3 |
Strainer |
|
|
| 3 |
Valve, Inlet Needle |
|
|
| 4 |
Plug, Welch |
|
|
| 5 |
Lever, Metering |
|
|
| 5 |
Metering spring |
|
|
| 6 |
Pin |
|
|
| 7 |
Screw (Pin) |
|
|
| 9 |
Shaft Ass'y, Throttle |
|
|
| 9 |
Metering gasket |
|
|
| 13 |
Pump diaphragm |
|
|
| 13 |
Binding screw vs serration |
|
|
| 14 |
Gasket, Pump |
|
|
| 14 |
Base Kit, Primer |
|
|
| 14 |
Diaphragm Ass'y, Metering |
|
|
| 16 |
High speed screw |
|
|
| 17 |
Retainer, Syringe |
|
|
| 18 |
Screw, Retainer |
|
|
| 19 |
Primer bulb |
|
|
| 20 |
Valve, Throttle |
|
|
| 20 |
Friction Spring |
|
|
| 21 |
Stainless plug ball |
|
|
| 24 |
Valve screw |
|
|
| 24 |
Cover, Metering Chamber |
|
|
| 25 |
Shaft, Choke |
|
|
| 26 |
Return spring |
|
|
| 28 |
Screw, Idle Mixture |
|
|
| 32 |
Valve, Choke |
|
|
| 33 |
E-ring |
|
|
