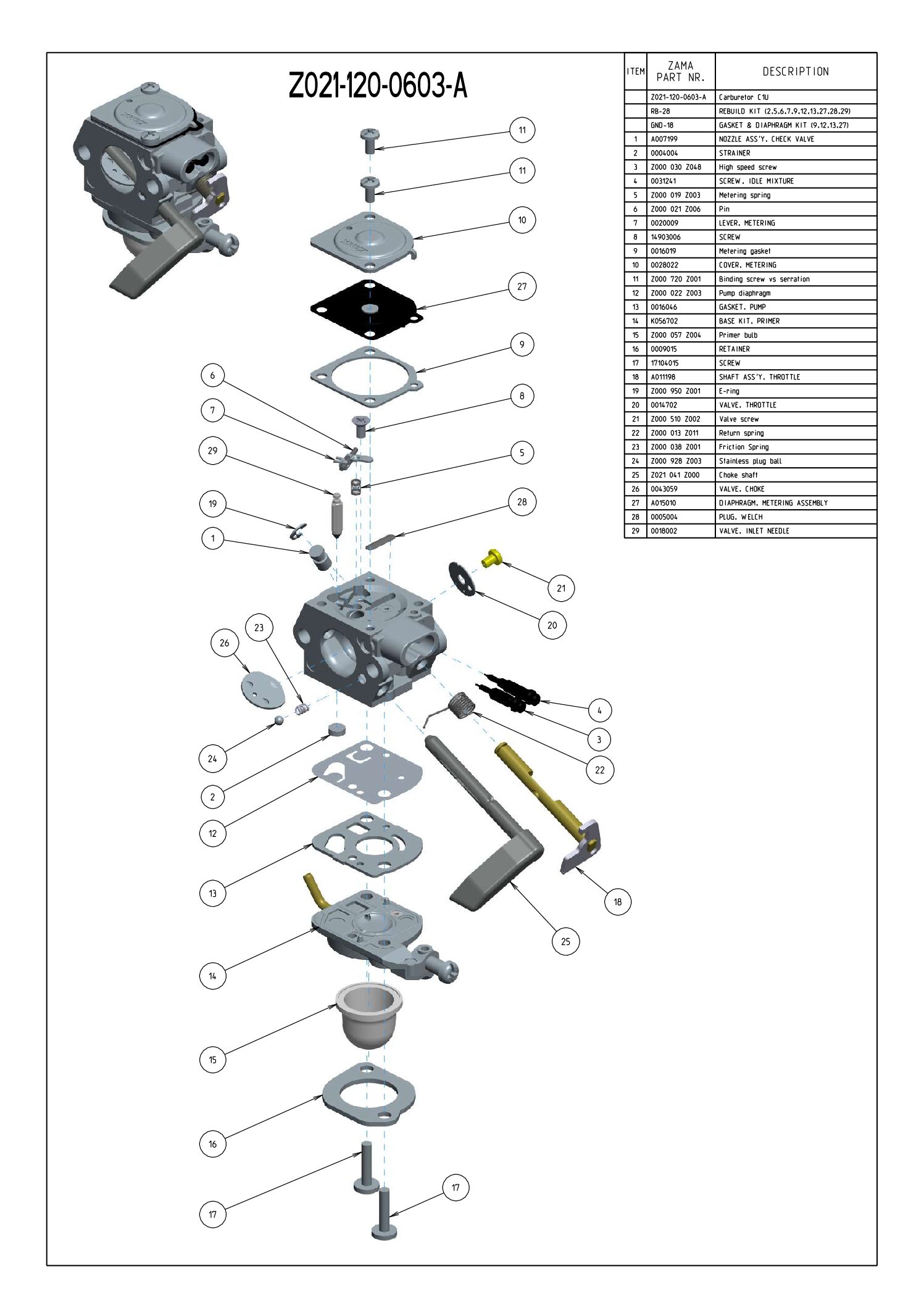

Z021-120-0603-A
| Ref | Part Name | Model Part | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| VENTURI |
9.0mm
This items is part of these Models:
|
||||||||||
 |
Rebuild Kit | ||||||||||
 |
Gasket & Diaphragm Kit | |
GND-18
This items is part of these Models:
|
||||||||
| 1 | Nozzle Ass'y, Check Valve |
A007199
This items is part of these Models: |
|||||||||
| 2 | Strainer | |
4004
|
||||||||
| 3 | High speed screw |
Z000 030 Z048
This items is part of these Models: |
|||||||||
| 4 | Screw, Idle Mixture |
31241
This items is part of these Models: |
|||||||||
| 5 | Metering spring | |
Z000 019 Z003
This items is part of these Models: |
||||||||
| 6 | Pin | |
Z000 021 Z006
This items is part of these Models:
|
||||||||
| 7 | Lever, Metering | |
20009
This items is part of these Models: |
||||||||
| 8 | Screw |
14903006
This items is part of these Models: |
|||||||||
| 9 | Metering gasket | |
16019
This items is part of these Models: |
||||||||
| 10 | Cover, Metering |
28022
This items is part of these Models: |
|||||||||
| 11 | Binding screw vs serration |
Z000 720 Z001
|
|||||||||
| 12 | Pump diaphragm | |
Z000 022 Z003
This items is part of these Models: |
||||||||
| 13 | Gasket, Pump | |
|||||||||
| 14 | Base Kit, Primer |
K056702
This items is part of these Models: |
|||||||||
| 15 | Primer bulb |
Z000 057 Z004
This items is part of these Models: |
|||||||||
| 16 | RETAINER |
9015
This items is part of these Models: |
|||||||||
| 17 | SCREW |
17104015
This items is part of these Models: |
|||||||||
| 18 | Shaft Ass'y, Throttle |
A011198
This items is part of these Models: |
|||||||||
| 19 | E-ring |
Z000 950 Z001
This items is part of these Models: |
|||||||||
| 20 | Valve, Throttle |
14702
This items is part of these Models: |
|||||||||
| 21 | Valve screw |
Z000 510 Z002
This items is part of these Models: |
|||||||||
| 22 | Return spring |
Z000 013 Z011
This items is part of these Models: |
|||||||||
| 23 | Friction Spring |
Z000 038 Z001
This items is part of these Models: |
|||||||||
| 24 | Stainless plug ball |
Z000 928 Z003
This items is part of these Models: |
|||||||||
| 25 | Choke shaft |
Z021 041 Z000
This items is part of these Models: |
|||||||||
| 26 | Valve, Choke |
43059
This items is part of these Models: |
|||||||||
| 27 | DIAPHRAGM METERING ASSEMBLY | |
A015010
This items is part of these Models: |
||||||||
| 28 | Plug, Welch | |
5004
This items is part of these Models: |
||||||||
| 29 | Valve, Inlet Needle | |
18002
This items is part of these Models: |
