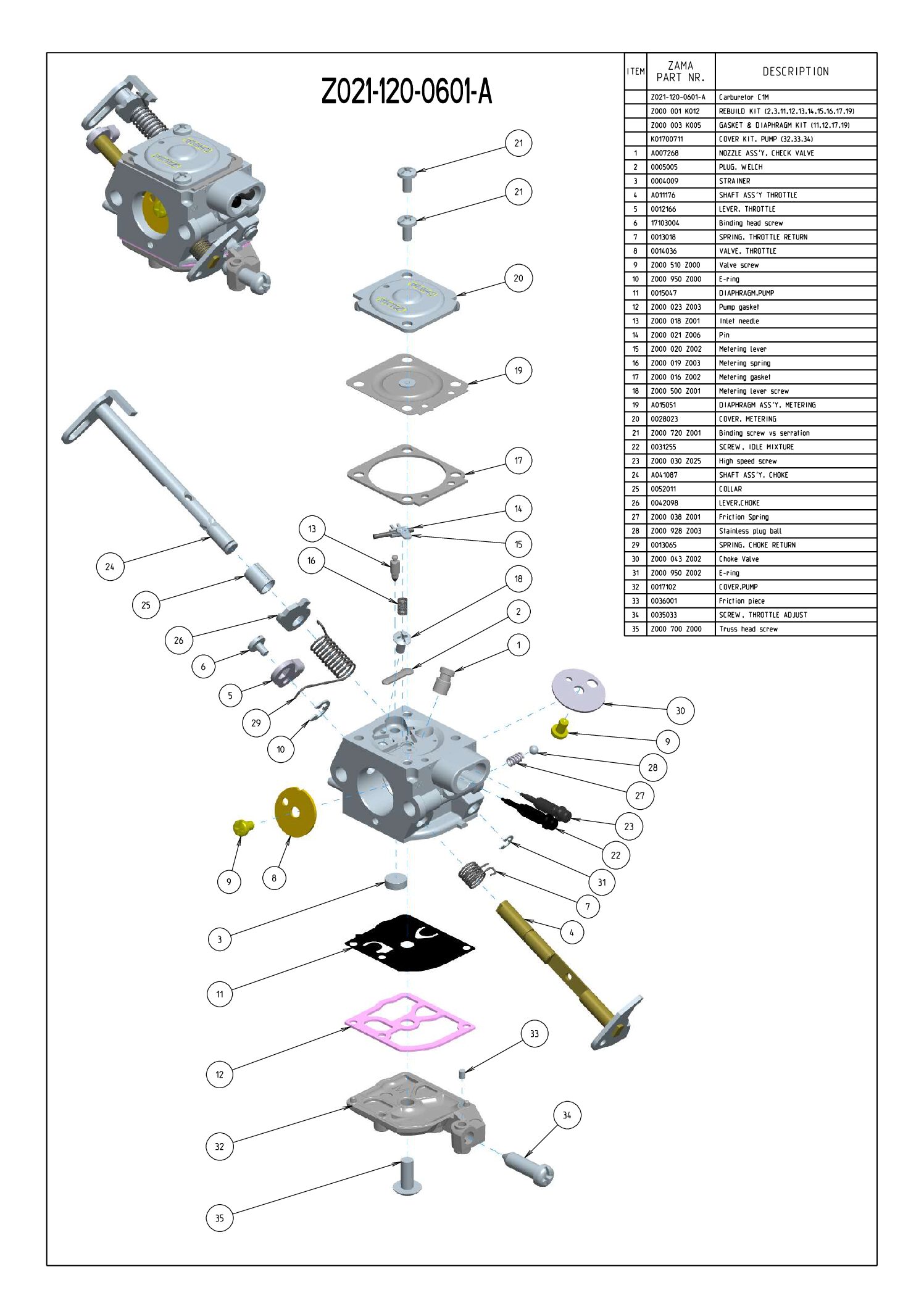

Ref |
Part Name |
|
Model Part |
|
Venturi |
|
|
 |
REBUILD KIT |
|
|
 |
GASKET & DIAPHRAGM KIT |
|
|
 |
COVER KIT, PUMP |
|
|
| 1 |
Strainer |
|
|
| 2 |
Nozzle Ass'y, Check Valve |
|
|
| 4 |
Plug, Welch |
|
|
| 5 |
Metering spring |
|
|
| 6 |
Pin |
|
|
| 7 |
Shaft Ass'y, Throttle |
|
|
| 7 |
Metering lever |
|
|
| 8 |
Lever, Throttle |
|
|
| 8 |
Metering lever screw |
|
|
| 8 |
Inlet needle |
|
|
| 9 |
Spring, Throttle Return |
|
|
| 12 |
Diaphragm, Pump |
|
|
| 12 |
Pump gasket |
|
|
| 13 |
Valve, Throttle |
|
|
| 13 |
Binding screw vs serration |
|
|
| 14 |
Cover, Pump |
|
|
| 17 |
Metering gasket |
|
|
| 19 |
Diaphragm Ass'y, Metering |
|
|
| 20 |
Truss head screw |
|
|
| 20 |
Friction Spring |
|
|
| 21 |
Stainless plug ball |
|
|
| 22 |
E-ring |
|
|
| 22 |
Screw, Idle Mixture |
|
|
| 23 |
High speed screw |
|
|
| 24 |
E-ring |
|
|
| 24 |
Cover, Metering Chamber |
|
|
| 29 |
Shaft Ass'y, Choke |
|
|
| 29 |
Screw, Throttle Adjust |
|
|
| 30 |
Piece, Friction |
|
|
| 32 |
Valve screw |
|
|
| 36 |
Choke Valve |
|
|
| 46 |
Screw (Throttle Lever) |
|
|
| 54 |
Spring, Choke |
|
|
| 56 |
Lever, Choke |
|
|
| 57 |
Collar, Choke Shaft |
|
|
