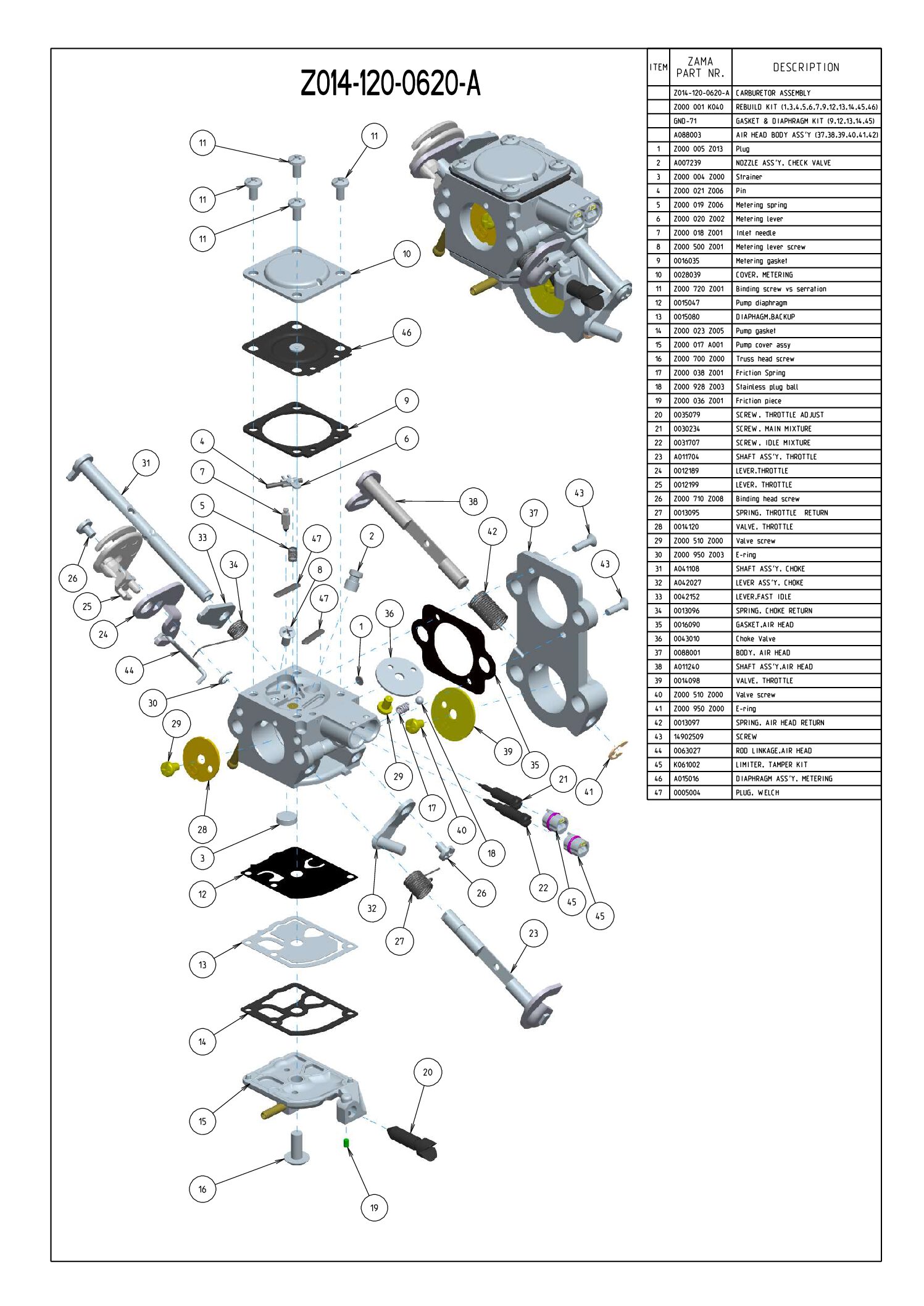

Ref |
Part Name |
|
Model Part |
|
Venturi |
|
|
 |
REBUILD KIT |
|
|
 |
Gasket & Diaphragm Kit |
|
|
| c |
Body Ass'y, Airhead |
|
|
| 2 |
Plug |
|
|
| 2 |
Nozzle Ass'y, Check Valve |
|
|
| 3 |
Strainer |
|
|
| 4 |
Plug, Welch |
|
|
| 5 |
Metering spring |
|
|
| 6 |
Pin |
|
|
| 7 |
Metering lever |
|
|
| 8 |
Lever, Throttle |
|
|
| 8 |
Inlet needle |
|
|
| 8 |
Metering lever screw |
|
|
| 9 |
Spring, Throttle Return |
|
|
| 10 |
Valve, Throttle |
|
|
| 10 |
Valve, Throttle |
|
|
| 11 |
Diaphragm Ass'y, Metering |
|
|
| 12 |
Diaphragm, Pump |
|
|
| 13 |
Binding screw vs serration |
|
|
| 15 |
Pump cover assy |
|
|
| 16 |
Pump gasket |
|
|
| 16 |
Diaphragm, Surge |
|
|
| 17 |
Gasket, Metering Chamber |
|
|
| 19 |
Friction piece |
 |
|
| 20 |
Truss head screw |
|
|
| 20 |
Friction Spring |
|
|
| 21 |
Stainless plug ball |
|
|
| 21 |
Cover, Metering Chamber |
|
|
| 22 |
Screw, Idle Mixture |
|
|
| 22 |
E-ring |
|
|
| 23 |
E-ring |
|
|
| 26 |
Screw, Throttle Adjust |
|
|
| 27 |
Screw, Main Mixture |
|
|
| 28 |
Shaft Ass'y, Throttle |
|
|
| 28 |
Binding head screw |
|
|
| 29 |
Shaft Ass'y, Choke |
|
|
| 32 |
Valve screw |
|
|
| 33 |
Valve, Choke |
|
|
| 37 |
BODY, AIR HEAD |
|
|
| 38 |
SHAFT ASS'Y,AIR HEAD |
|
|
| 42 |
SPRING, AIR HEAD RETURN |
|
|
| 43 |
Rod Linkage, Air Head |
|
|
| 53 |
Limiter, Mixture (H) |
|
|
| 54 |
Spring, Choke |
|
|
| 55 |
Lever, Choke Control |
|
|
| 56 |
Lever, Choke |
|
|
| 64 |
Screw |
|
|
| 65 |
Gasket Airhead |
|
|
| 67 |
Lever, Throttle for Airhead |
|
|
