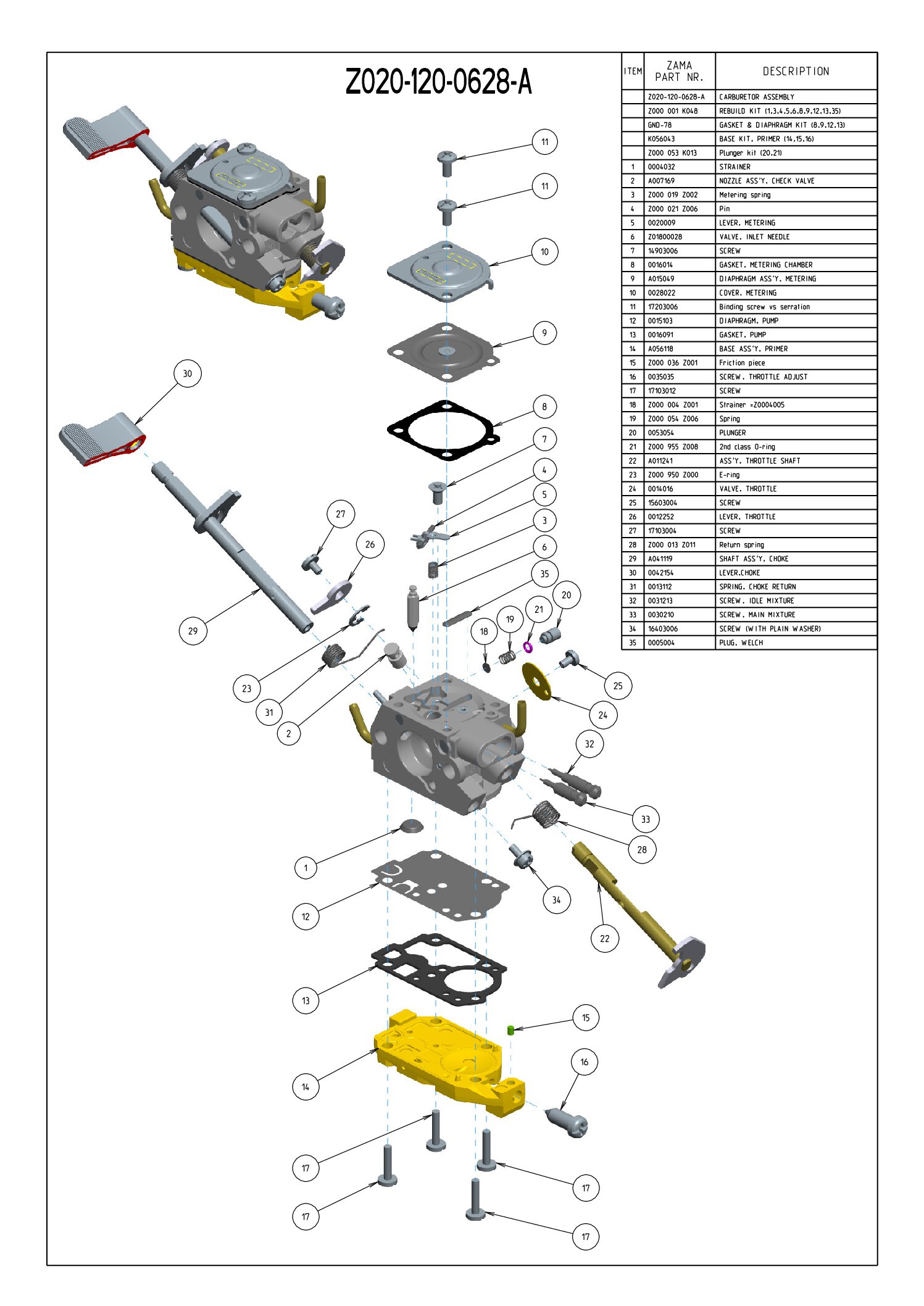

参照 |
部品名 |
|
モデル部品 |
|
VENTURI |
|
|
 |
REBUILD KIT |
|
|
 |
Gasket & Diaphragm Kit |
|
|
 |
Base Kit, Primer |
|
|
| d |
Plunger kit |
|
|
| 1 |
Strainer |
|
|
| 2 |
Nozzle Ass'y, Check Valve |
|
|
| 4 |
Plug, Welch |
|
|
| 5 |
Metering spring |
|
|
| 5 |
Lever, Metering |
|
|
| 6 |
Pin |
|
|
| 7 |
VALVE, INLET NEEDLE |
|
|
| 7 |
Screw (Pin) |
|
|
| 9 |
Shaft Ass'y, Throttle |
|
|
| 10 |
Lever, Throttle |
|
|
| 13 |
Valve, Throttle |
|
|
| 13 |
Diaphragm Ass'y, Metering |
|
|
| 14 |
Gasket, Metering Chamber |
|
|
| 14 |
BASE ASS'Y, PRIMER |
 |
|
| 19 |
Friction piece |
|
|
| 20 |
Diaphragm, Pump |
|
|
| 20 |
PLUNGER |
d |
|
| 21 |
2nd class O-ring |
d |
|
| 21 |
Gasket, Pump |
|
|
| 22 |
E-ring |
|
|
| 22 |
Strainer |
|
|
| 23 |
Spring |
|
|
| 24 |
Cover, Metering Chamber |
|
|
| 26 |
Screw, Main Mixture |
|
|
| 26 |
Return spring |
|
|
| 27 |
Screw, Idle Mixture |
|
|
| 29 |
Screw, Throttle Adjust |
|
|
| 31 |
Shaft Ass'y, Choke |
|
|
| 36 |
Screw, Choke Shaft |
|
|
| 41 |
Screw (Throttle Valve) |
|
|
| 44 |
Screw (Metering Cover) |
|
|
| 46 |
Screw (Throttle Lever) |
|
|
| 51 |
Screw, Retainer |
|
|
| 60 |
Lever, Choke |
|
|
| 62 |
Spring, Choke Return |
|
|
