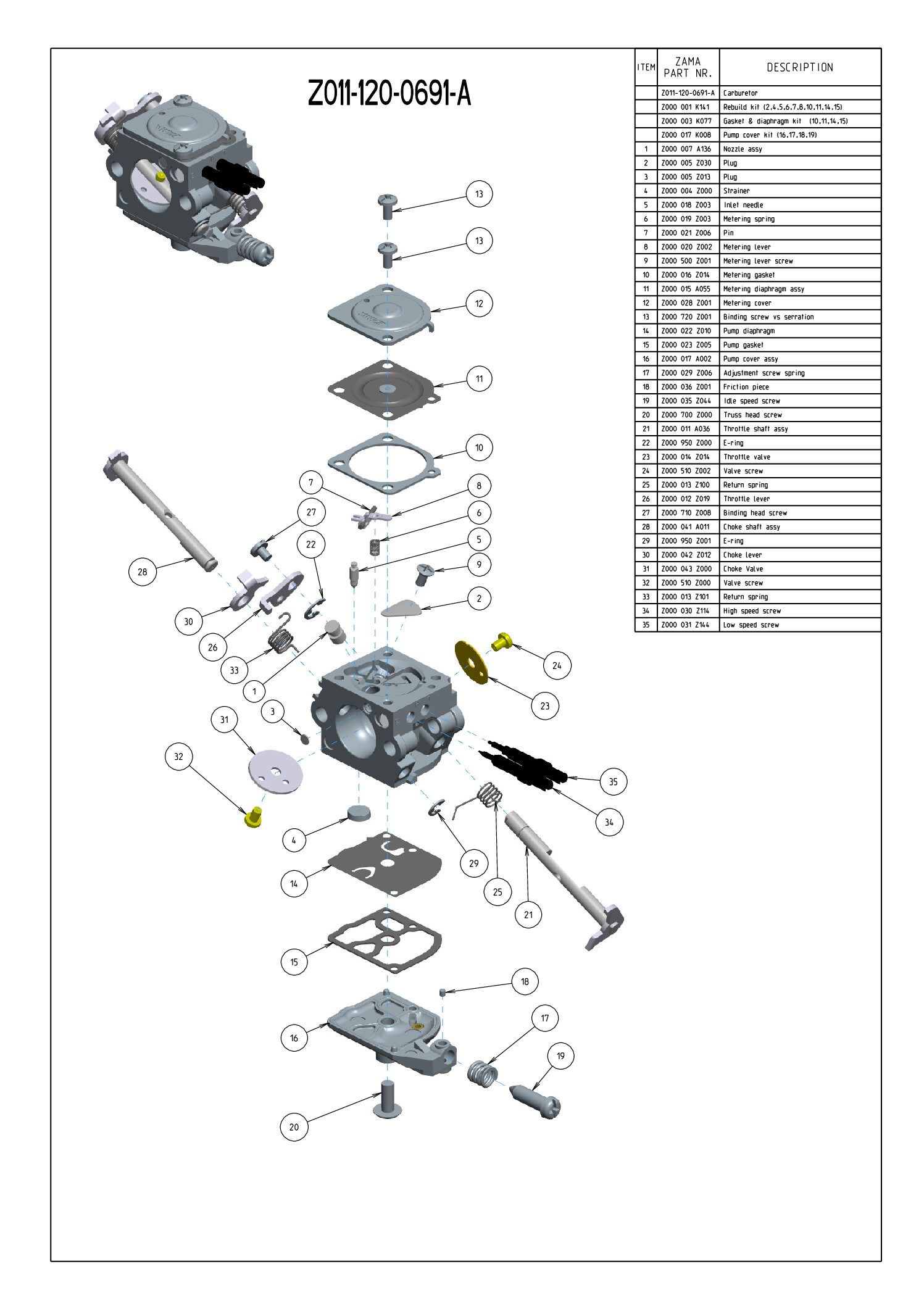

Z011-120-0691-A
| 参照 | 部品名 | モデル部品 | |
|---|---|---|---|
| Venturi | |||
 |
Rebuild kit | ||
 |
Gasket & diaphragm kit | |
|
 |
Pump cover kit | ||
| 1 | Nozzle assy | ||
| 2 | Plug | ||
| 2 | Plug | |
|
| 3 | Strainer | |
|
| 5 | Metering spring | |
|
| 6 | Pin | |
|
| 7 | Metering lever | |
|
| 8 | Metering lever screw | ||
| 8 | Inlet needle | |
|
| 9 | Metering gasket | |
|
| 11 | Metering diaphragm assy | |
|
| 12 | Metering cover | ||
| 13 | Binding screw vs serration | ||
| 14 | Pump diaphragm | |
|
| 16 | Pump cover assy | |
|
| 16 | Pump gasket | |
|
| 17 | Adjustment screw spring | |
|
| 19 | Friction piece | |
|
| 19 | Idle speed screw | |
|
| 20 | Truss head screw | ||
| 21 | Throttle shaft assy | ||
| 22 | E-ring | ||
| 23 | Throttle valve | ||
| 24 | Valve screw | ||
| 25 | Return spring | ||
| 26 | Throttle lever | ||
| 28 | Choke shaft assy | ||
| 28 | Binding head screw | ||
| 30 | Choke lever | ||
| 31 | Choke Valve | ||
| 32 | Valve screw | ||
| 33 | E-ring | ||
| 33 | Return spring | ||
| 34 | High speed screw | ||
| 35 | Low speed screw |
