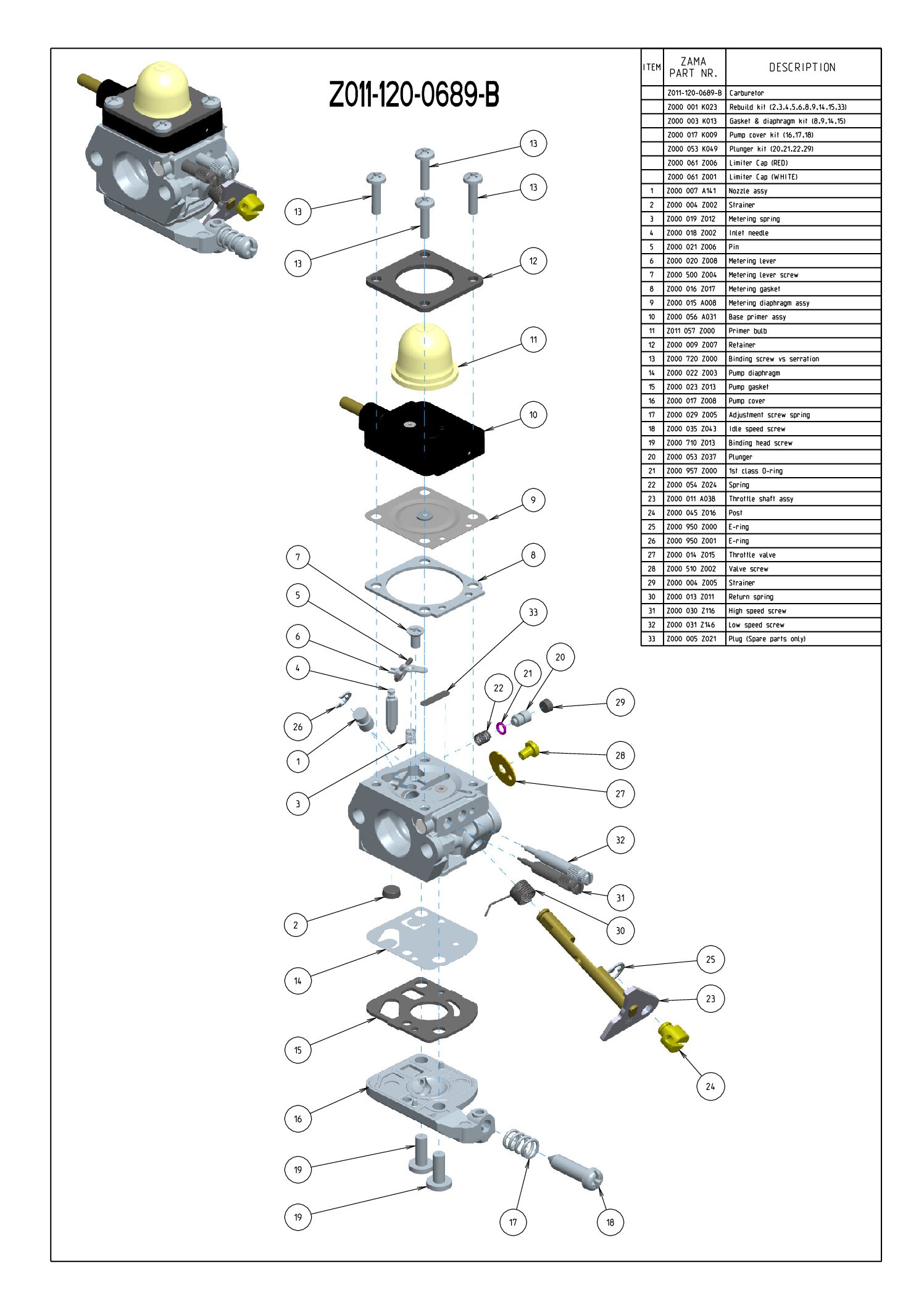

Z011-120-0689-B
| 参照 | 部品名 | モデル部品 | |
|---|---|---|---|
| Venturi | |||
| Limiter Cap (H) | |||
 |
Rebuild kit | ||
 |
Gasket & diaphragm kit | |
|
 |
Pump cover kit | ||
| d | Plunger kit | ||
| 1 | Nozzle assy | ||
| 2 | Plug | |
|
| 3 | Metering spring | |
|
| 3 | Strainer | |
|
| 4 | Inlet needle | |
|
| 6 | Pin | |
|
| 6 | Metering lever | |
|
| 8 | Metering gasket | |
|
| 9 | Metering lever screw | ||
| 9 | Metering diaphragm assy | |
|
| 10 | Base primer assy | ||
| 12 | Primer bulb | ||
| 13 | Pump diaphragm | |
|
| 13 | Retainer | ||
| 14 | Binding screw vs serration | ||
| 15 | Pump gasket | |
|
| 16 | Pump cover | |
|
| 18 | Idle speed screw | |
|
| 18 | Adjustment screw spring | |
|
| 19 | Binding head screw | ||
| 20 | Plunger | d | |
| 21 | 1st class O-ring | d | |
| 22 | E-ring | ||
| 22 | Spring | d | |
| 23 | Throttle shaft assy | ||
| 24 | Valve screw | ||
| 26 | Return spring | ||
| 27 | Throttle valve | ||
| 27 | Post | ||
| 31 | High speed screw | ||
| 32 | Strainer | |
|
| 32 | Low speed screw | ||
| 33 | E-ring | ||
| 39 | Limiter Cap |
