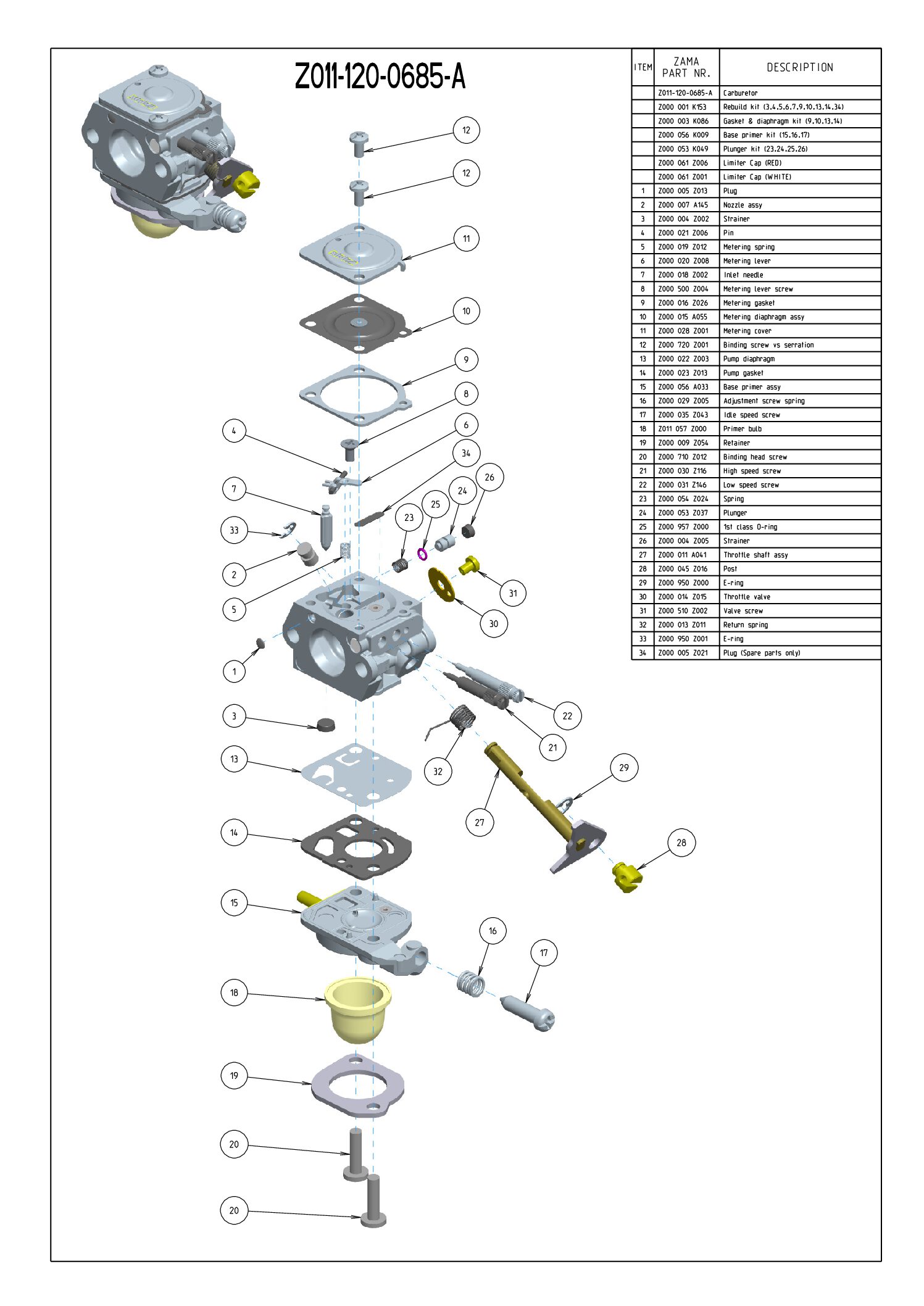

参照 |
部品名 |
|
モデル部品 |
|
Venturi |
|
|
|
Limiter Cap (WHITE) |
|
|
|
Limiter Cap (RED) |
|
|
 |
Rebuild kit |
|
|
 |
Gasket & diaphragm kit |
|
|
 |
Base primer kit |
|
|
| d |
Plunger kit |
|
|
| 1 |
Plug |
|
|
| 2 |
Nozzle assy |
|
|
| 3 |
Strainer |
|
|
| 4 |
Pin |
|
|
| 5 |
Metering spring |
|
|
| 6 |
Metering lever |
|
|
| 7 |
Inlet needle |
|
|
| 8 |
Metering lever screw |
|
|
| 9 |
Metering gasket |
|
|
| 10 |
Metering diaphragm assy |
|
|
| 11 |
Metering cover |
|
|
| 12 |
Binding screw vs serration |
|
|
| 13 |
Pump diaphragm |
|
|
| 14 |
Pump gasket |
|
|
| 15 |
Base primer assy |
|
|
| 16 |
Adjustment screw spring |
|
|
| 17 |
Idle speed screw |
|
|
| 18 |
Primer bulb |
|
|
| 19 |
Retainer |
|
|
| 20 |
Binding head screw |
|
|
| 21 |
High speed screw |
|
|
| 22 |
Low speed screw |
|
|
| 23 |
Spring |
d |
|
| 24 |
Plunger |
d |
|
| 25 |
1st class O-ring |
d |
|
| 26 |
Strainer |
d |
|
| 27 |
Throttle shaft assy |
|
|
| 28 |
Post |
|
|
| 29 |
E-ring |
|
|
| 30 |
Throttle valve |
|
|
| 31 |
Valve screw |
|
|
| 32 |
Return spring |
|
|
| 33 |
E-ring |
|
|
| 34 |
Plug (Spare parts only) |
|
|
