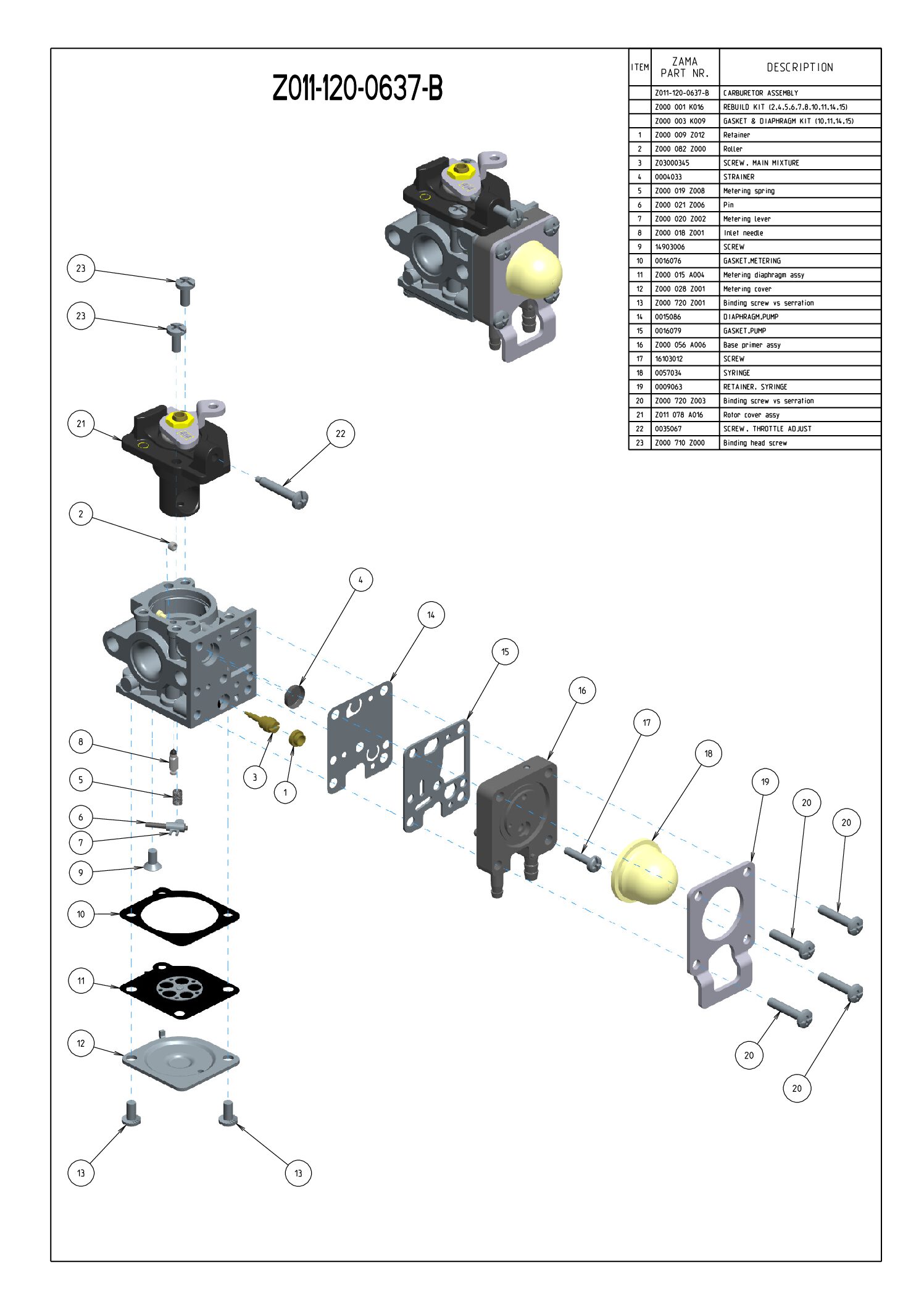

参照 |
部品名 |
|
モデル部品 |
|
VENTURI |
|
|
 |
REBUILD KIT |
|
|
 |
GASKET & DIAPHRAGM KIT |
|
|
| 1 |
Retainer |
|
|
| 2 |
Roller |
|
|
| 3 |
SCREW, MAIN MIXTURE |
|
|
| 4 |
Strainer |
|
|
| 5 |
Metering spring |
|
|
| 6 |
Pin |
|
|
| 7 |
Metering lever |
|
|
| 8 |
Inlet needle |
|
|
| 9 |
Screw |
|
|
| 10 |
GASKET??METERING |
|
|
| 11 |
Metering diaphragm assy |
|
|
| 12 |
Metering cover |
|
|
| 13 |
Binding screw vs serration |
|
|
| 14 |
DIAPHRAGM??PUMP |
|
|
| 15 |
GASKET??PUMP |
|
|
| 16 |
Base primer assy |
|
|
| 17 |
Screw |
|
|
| 18 |
Syringe |
|
|
| 19 |
Retainer, Syringe |
|
|
| 20 |
Binding screw vs serration |
|
|
| 21 |
Rotor cover assy |
|
|
| 22 |
Screw, Throttle Adjust |
|
|
| 23 |
Binding head screw |
|
|
