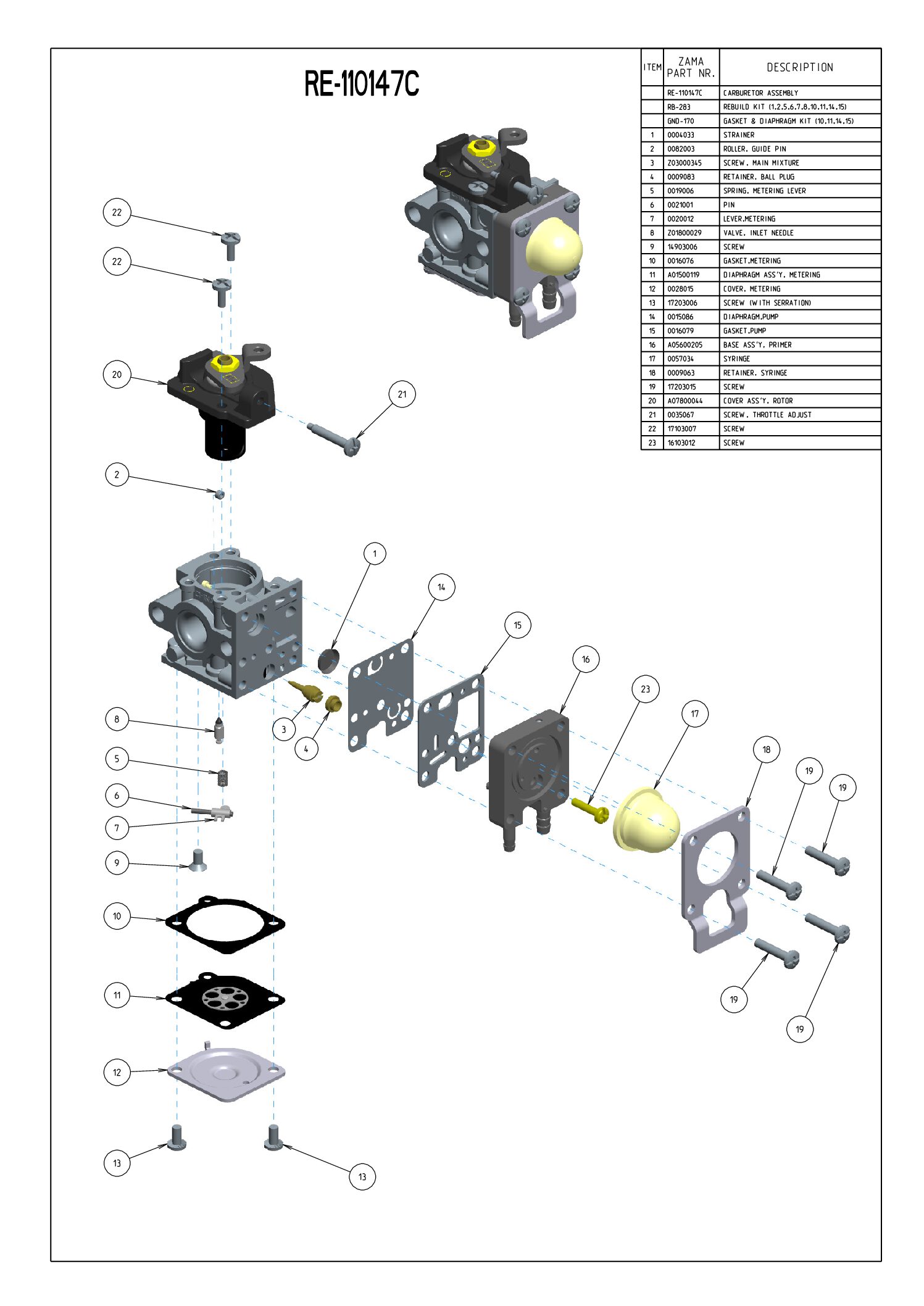

RE-110147C
| 参照 | 部品名 | モデル部品 | |
|---|---|---|---|
| VENTURI | |||
 |
Rebuild Kit | ||
 |
Gasket & Diaphragm Kit | |
|
| 1 | Strainer | |
|
| 2 | Roller, Guide | |
|
| 3 | SCREW, MAIN MIXTURE | ||
| 3 | Retainer, Syringe | ||
| 4 | Valve, Inlet Needle | |
|
| 5 | Diaphragm, Pump | |
|
| 7 | Gasket, Pump | |
|
| 7 | Screw (Pin) | ||
| 8 | Gasket, Metering Chamber | |
|
| 11 | Diaphragm Ass'y, Metering | |
|
| 14 | Screw, Throttle Adjust | ||
| 16 | Base Ass'y, Primer | ||
| 17 | Syringe | ||
| 20 | COVER ASS'Y, ROTOR | ||
| 21 | Spring, Metering Lever | |
|
| 22 | Lever, Metering | |
|
| 23 | Pin | |
|
| 24 | Screw (Base Ass'y, Primer) | ||
| 24 | Cover, Metering Chamber | ||
| 33 | Retainer, Plug Ball | ||
| 44 | Screw (Metering Cover) | ||
| 44 | Screw (Metering Cover) | ||
| 51 | Screw, Retainer |
