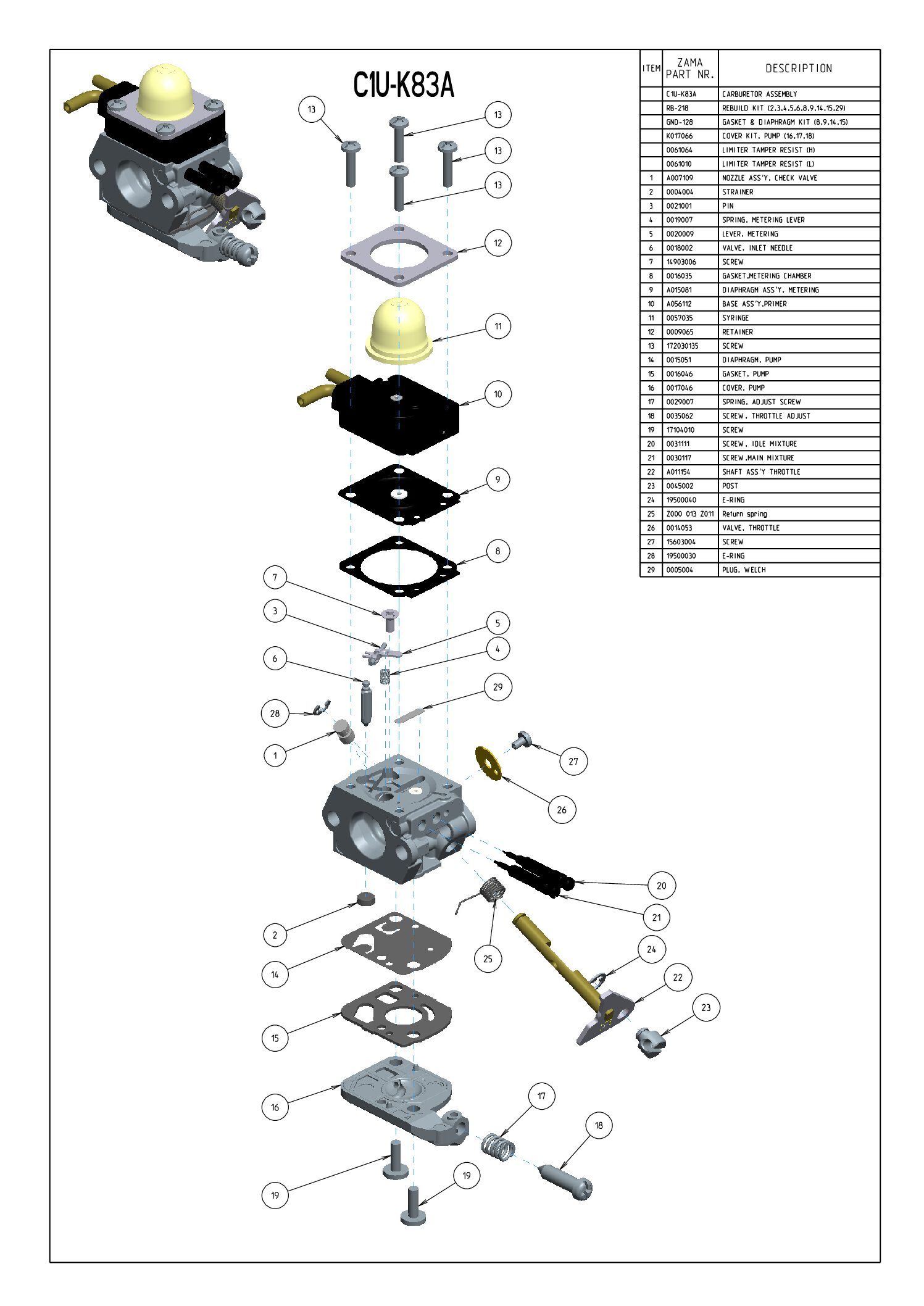

参照 |
部品名 |
|
モデル部品 |
|
Venturi |
|
|
 |
Rebuild Kit |
|
|
 |
Gasket & Diaphragm Kit |
|
|
 |
Cover Kit, Pump |
|
|
| ----- |
Limiter, Mixture (H) |
|
|
| 3 |
Strainer |
|
|
| 3 |
Valve, Inlet Needle |
|
|
| 4 |
Plug, Welch |
|
|
| 5 |
Lever, Metering |
|
|
| 7 |
Screw (Pin) |
|
|
| 8 |
Nozzle Ass'y, Check Valve |
|
|
| 8 |
Retainer, Syringe |
|
|
| 9 |
Diaphragm Ass'y, Metering |
|
|
| 12 |
Valve, Throttle |
|
|
| 12 |
Syringe |
|
|
| 12 |
Spring, Throttle Return |
|
|
| 13 |
Diaphragm, Pump |
|
|
| 14 |
Cover, Pump |
|
|
| 14 |
Gasket, Pump |
|
|
| 17 |
Gasket, Metering Chamber |
|
|
| 18 |
Spring, Metering Lever |
|
|
| 22 |
Screw, Idle Mixture |
|
|
| 22 |
Shaft Ass'y, Throttle |
|
|
| 23 |
Pin |
|
|
| 23 |
Post |
|
|
| 25 |
Screw, Main Mixture |
|
|
| 26 |
Spring, Adjust Screw |
|
|
| 28 |
Screw, Throttle Adjust |
|
|
| 31 |
E-Ring |
|
|
| 38 |
Base Ass'y, Primer |
|
|
| 41 |
Screw (Throttle Valve) |
|
|
| 45 |
Screw (Pump Cover) |
|
|
| 48 |
E-Ring (Throttle Shaft) |
|
|
| 51 |
Screw, Retainer |
|
|
| 54 |
Limiter, Mixture (L) |
|
|
