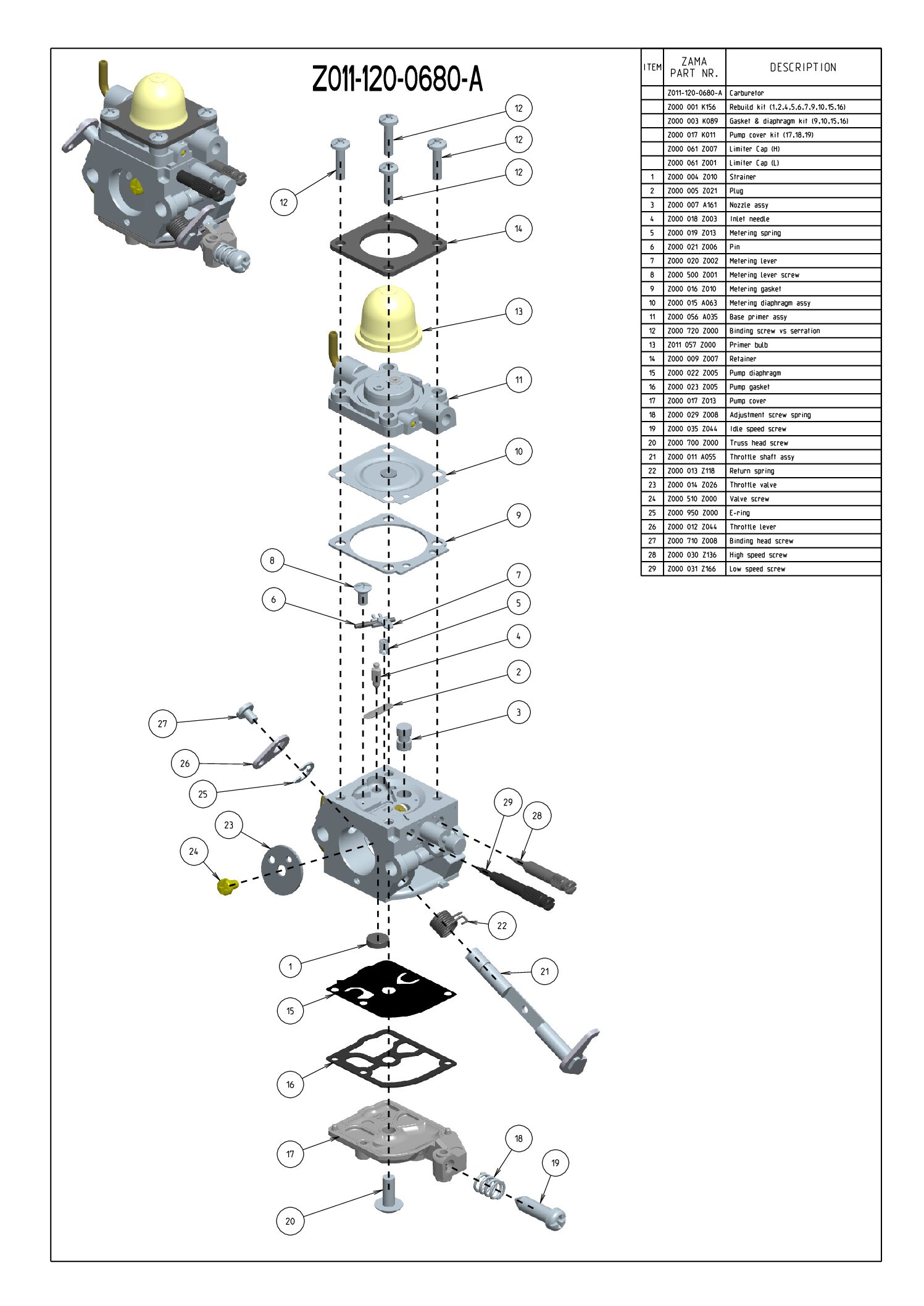

Z011-120-0680-A
| 参考 | 零件名称 | 型号零件 | |
|---|---|---|---|
| Venturi | |||
| Limiter Cap (RED) | |||
 |
Rebuild kit | ||
 |
Gasket & diaphragm kit | |
|
 |
Pump cover kit | ||
| 2 | Strainer | |
|
| 2 | Plug | |
|
| 3 | Nozzle assy | ||
| 4 | Metering spring | |
|
| 6 | Pin | |
|
| 7 | Metering lever | |
|
| 8 | Metering lever screw | ||
| 8 | Inlet needle | |
|
| 8 | Metering gasket | |
|
| 10 | Metering diaphragm assy | |
|
| 10 | Base primer assy | ||
| 12 | Pump diaphragm | |
|
| 12 | Primer bulb | ||
| 13 | Retainer | ||
| 14 | Binding screw vs serration | ||
| 16 | Pump cover | |
|
| 16 | Pump gasket | |
|
| 17 | Adjustment screw spring | |
|
| 19 | Idle speed screw | |
|
| 20 | Truss head screw | ||
| 21 | Throttle lever | ||
| 22 | E-ring | ||
| 23 | Throttle shaft assy | ||
| 23 | Throttle valve | ||
| 24 | Return spring | ||
| 28 | High speed screw | ||
| 28 | Binding head screw | ||
| 29 | Low speed screw | ||
| 32 | Valve screw | ||
| 39 | Limiter Cap |
