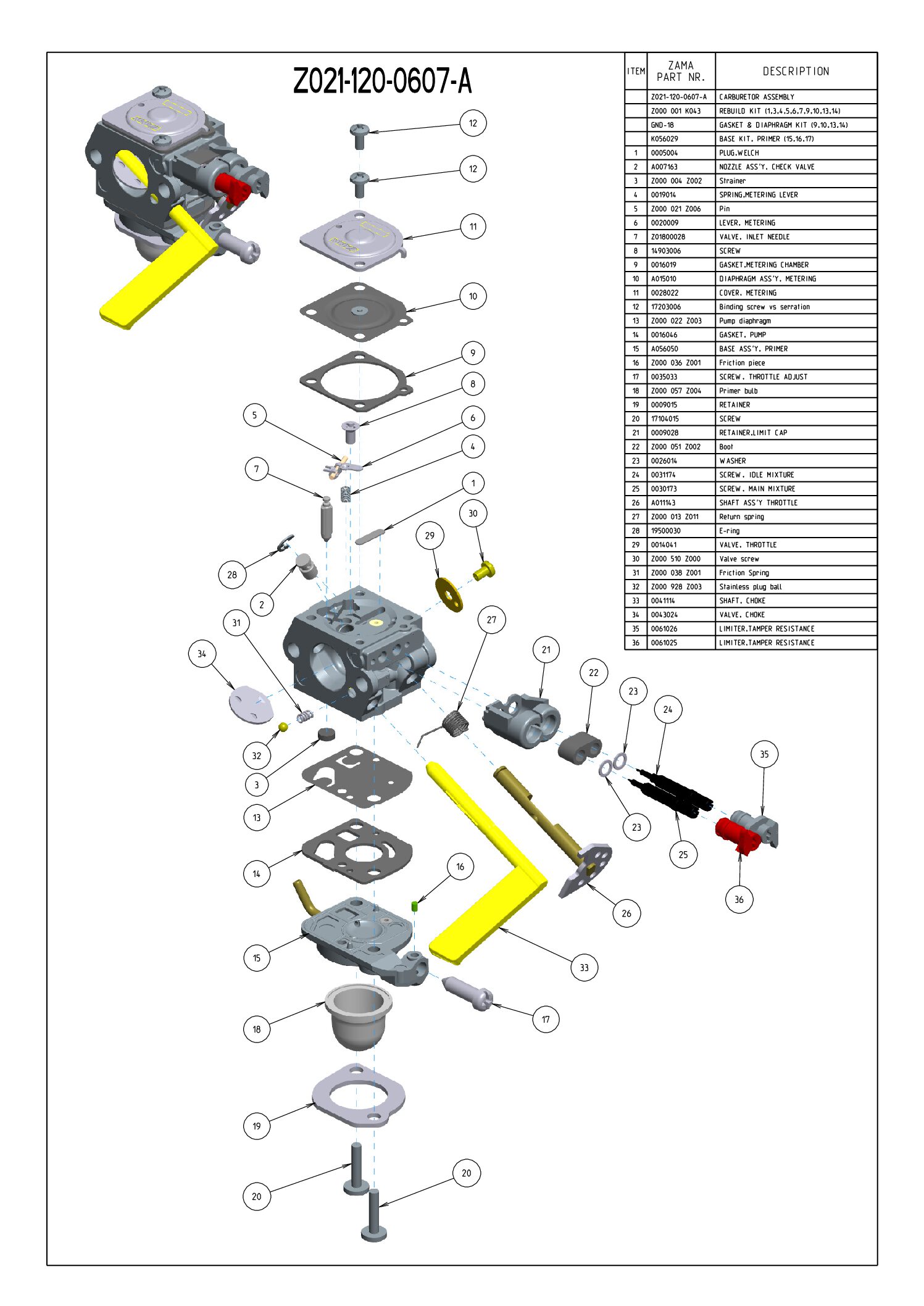

Ref |
Part Name |
|
Model Part |
|
VENTURI |
|
|
 |
REBUILD KIT |
|
|
 |
Gasket & Diaphragm Kit |
|
|
 |
Base Kit, Primer |
|
|
| 3 |
Strainer |
|
|
| 4 |
Plug, Welch |
|
|
| 5 |
Lever, Metering |
|
|
| 6 |
Pin |
|
|
| 7 |
VALVE, INLET NEEDLE |
|
|
| 7 |
Screw (Pin) |
|
|
| 9 |
Shaft Ass'y, Throttle |
|
|
| 9 |
Nozzle Ass'y, Check Valve |
|
|
| 12 |
Valve, Throttle |
|
|
| 13 |
Pump diaphragm |
|
|
| 14 |
Diaphragm Ass'y, Metering |
|
|
| 14 |
Gasket, Pump |
|
|
| 17 |
Gasket, Metering Chamber |
|
|
| 17 |
Retainer, Syringe |
|
|
| 18 |
Screw, Retainer |
|
|
| 19 |
Primer bulb |
|
|
| 19 |
Friction piece |
 |
|
| 20 |
Friction Spring |
|
|
| 21 |
Spring, Metering Lever |
|
|
| 21 |
Stainless plug ball |
|
|
| 23 |
Boot |
|
|
| 24 |
Cover, Metering Chamber |
|
|
| 26 |
Return spring |
|
|
| 26 |
Screw, Main Mixture |
|
|
| 27 |
Screw, Idle Mixture |
|
|
| 29 |
Screw, Throttle Adjust |
|
|
| 32 |
Valve, Choke |
|
|
| 32 |
Valve screw |
|
|
| 33 |
Shaft Ass'y, Choke |
|
|
| 38 |
Base Ass'y, Primer |
|
|
| 44 |
Screw (Metering Cover) |
|
|
| 48 |
E-Ring (Throttle Shaft) |
|
|
| 53 |
Limiter, Mixture (H) |
|
|
| 54 |
Limiter, Mixture (L) |
|
|
| 55 |
Washer (Limiter) |
|
|
| 56 |
Retainer (Limiter) |
|
|
