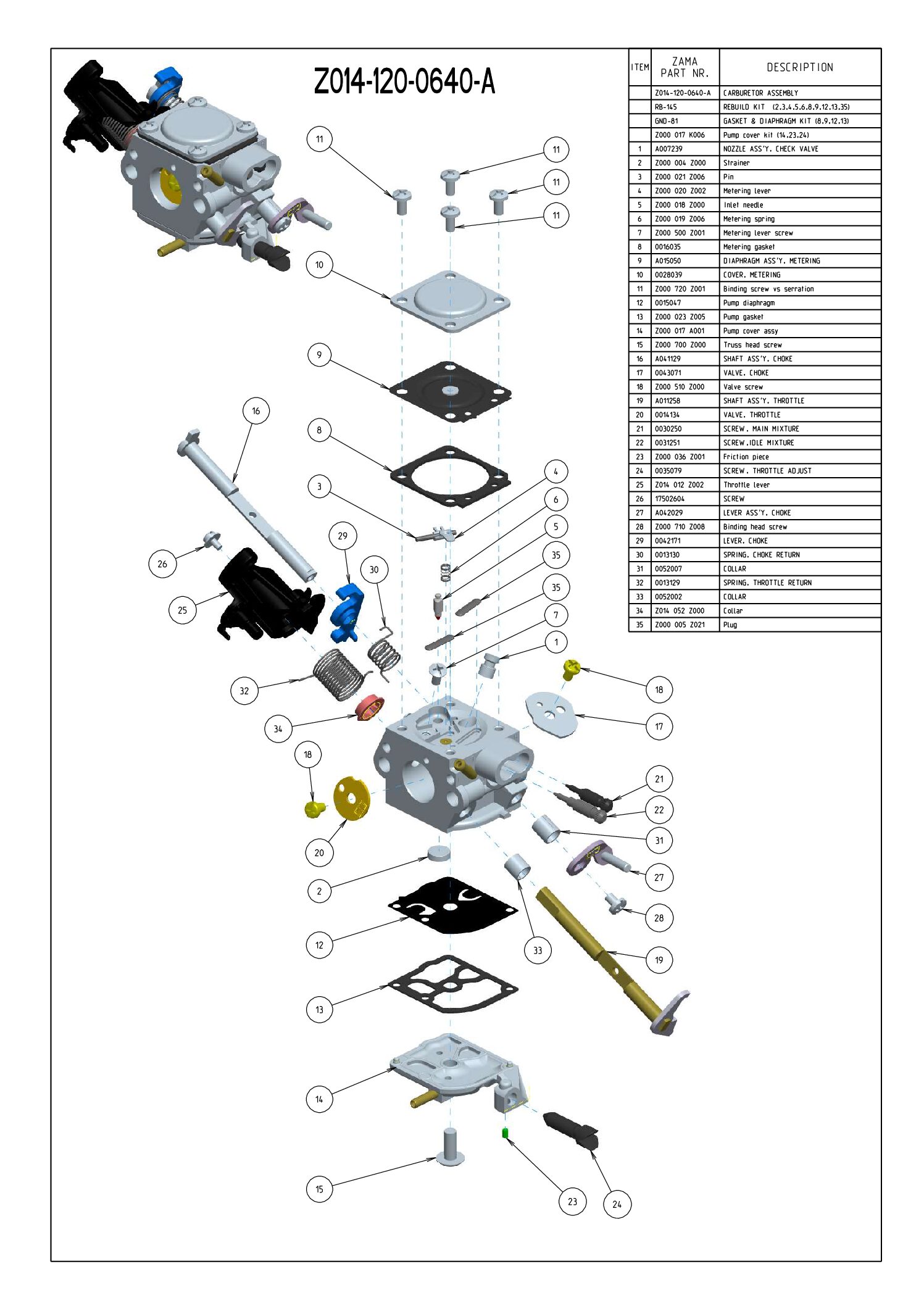

参照 |
部品名 |
|
モデル部品 |
|
Venturi |
|
|
 |
Rebuild Kit |
|
|
 |
Gasket & Diaphragm Kit |
|
|
 |
Pump cover kit |
|
|
| 1 |
Nozzle Ass'y, Check Valve |
|
|
| 2 |
Strainer |
|
|
| 3 |
Pin |
|
|
| 4 |
Metering lever |
|
|
| 5 |
Inlet needle |
|
|
| 6 |
Metering spring |
|
|
| 7 |
Metering lever screw |
|
|
| 8 |
Metering gasket |
|
|
| 9 |
Diaphragm Ass'y, Metering |
|
|
| 10 |
COVER, METERING |
|
|
| 11 |
Binding screw vs serration |
|
|
| 12 |
Pump diaphragm |
|
|
| 13 |
Pump gasket |
|
|
| 14 |
Pump cover assy |
|
|
| 15 |
Truss head screw |
|
|
| 16 |
Shaft Ass'y, Choke |
|
|
| 17 |
Valve, Choke |
|
|
| 18 |
Valve screw |
|
|
| 19 |
Shaft Ass'y, Throttle |
|
|
| 20 |
Valve, Throttle |
|
|
| 21 |
Screw, Main Mixture |
|
|
| 22 |
Screw, Idle Mixture |
|
|
| 23 |
Friction piece |
|
|
| 24 |
Screw, Throttle Adjust |
|
|
| 25 |
Throttle lever |
|
|
| 26 |
SCREW |
|
|
| 27 |
Lever Ass'y, Choke |
|
|
| 28 |
Binding head screw |
|
|
| 29 |
Lever, Choke |
|
|
| 30 |
SPRING CHOKE RETURN |
|
|
| 31 |
COLLAR |
|
|
| 32 |
Spring, Throttle Return |
|
|
| 33 |
Collar |
|
|
| 34 |
Collar |
|
|
| 35 |
Plug |
|
|
