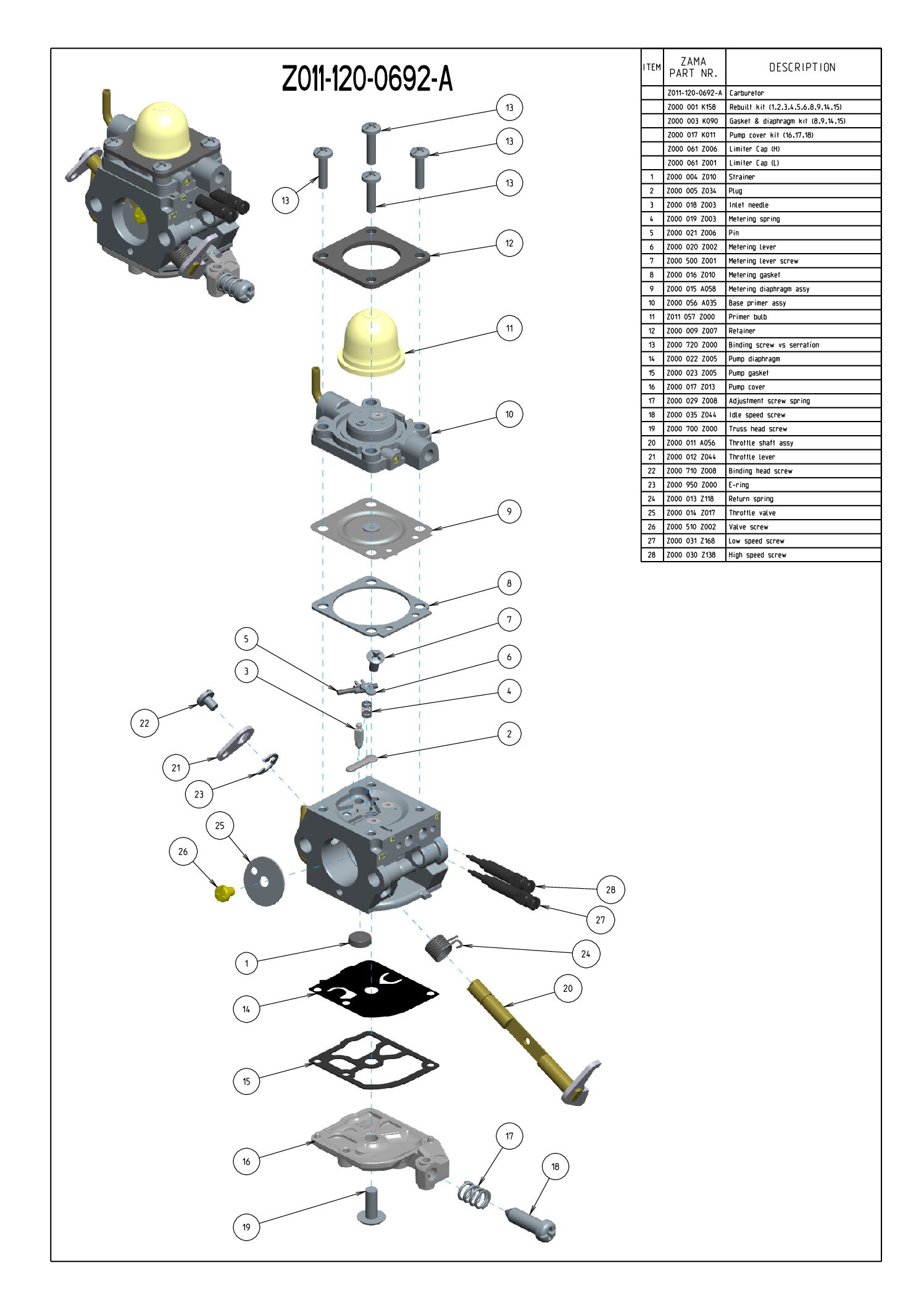

参照 |
部品名 |
|
モデル部品 |
|
Venturi |
|
|
|
Limiter Cap (L) |
|
|
|
Limiter Cap (H) |
|
|
 |
Rebuilt kit |
|
|
 |
Gasket & diaphragm kit |
|
|
 |
Pump cover kit |
|
|
| 1 |
Strainer |
|
|
| 2 |
Plug |
|
|
| 3 |
Inlet needle |
|
|
| 4 |
Metering spring |
|
|
| 5 |
Pin |
|
|
| 6 |
Metering lever |
|
|
| 7 |
Metering lever screw |
|
|
| 8 |
Metering gasket |
|
|
| 9 |
Metering diaphragm assy |
|
|
| 10 |
Base primer assy |
|
|
| 11 |
Primer bulb |
|
|
| 12 |
Retainer |
|
|
| 13 |
Binding screw vs serration |
|
|
| 14 |
Pump diaphragm |
|
|
| 15 |
Pump gasket |
|
|
| 16 |
Pump cover |
|
|
| 17 |
Adjustment screw spring |
|
|
| 18 |
Idle speed screw |
|
|
| 19 |
Truss head screw |
|
|
| 20 |
Throttle shaft assy |
|
|
| 21 |
Throttle lever |
|
|
| 22 |
Binding head screw |
|
|
| 23 |
E-ring |
|
|
| 24 |
Return spring |
|
|
| 25 |
Throttle valve |
|
|
| 26 |
Valve screw |
|
|
| 27 |
Low speed screw |
|
|
| 28 |
High speed screw |
|
|
