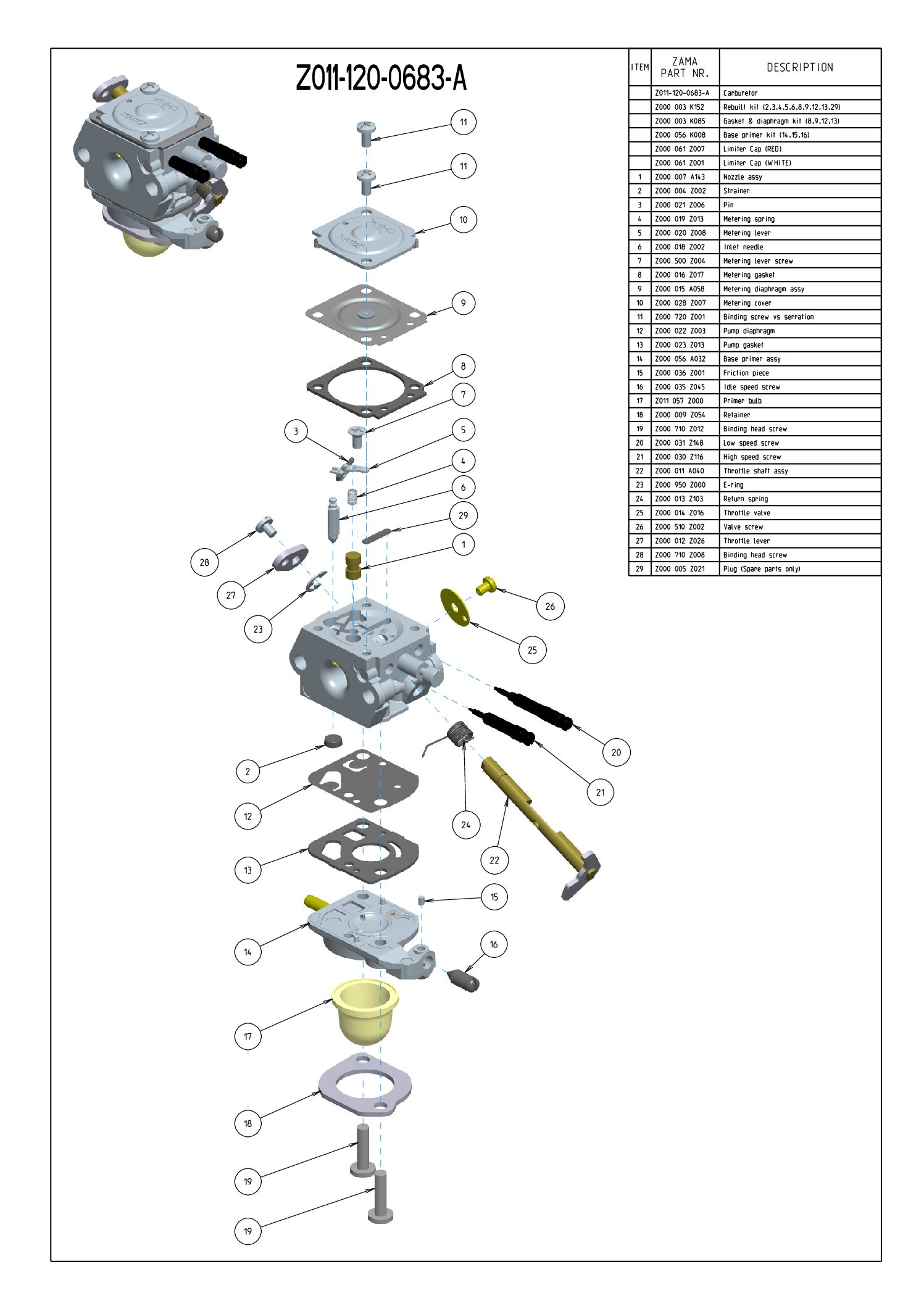

Z011-120-0683-A

参照 部品名 モデル部品
Limiter Cap (RED)
VENTURI
Limiter Cap (WHITE)
Rebuilt kit
Gasket & diaphragm kit
Base primer kit
1 Nozzle assy
2 Strainer
3 Pin
4 Metering spring
5 Metering lever
6 Inlet needle
7 Metering lever screw
8 Metering gasket
9 Metering diaphragm assy
10 Metering cover
11 Binding screw vs serration
12 Pump diaphragm
13 Pump gasket
14 Base primer assy
15 Friction piece
16 Idle speed screw
17 Primer bulb
18 Retainer
19 Binding head screw
20 Low speed screw
21 High speed screw
22 Throttle shaft assy
23 E-ring
24 Return spring
25 Throttle valve
26 Valve screw
27 Throttle lever
28 Binding head screw
29 Plug (Spare parts only)
