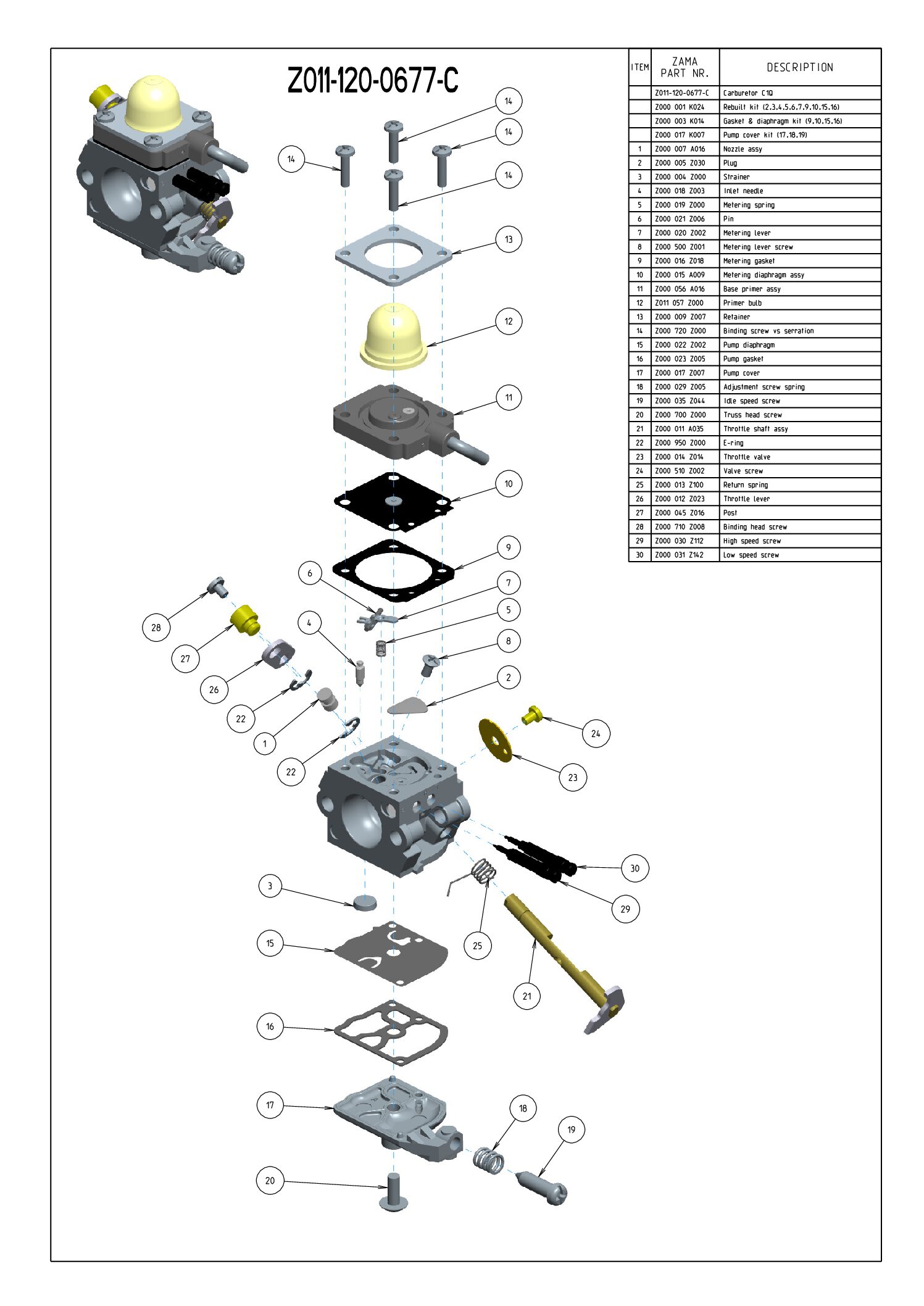

Z011-120-0677-C
| 参照 | 部品名 | モデル部品 | |
|---|---|---|---|
| Venturi | |||
 |
REBUILD KIT | ||
 |
GASKET & DIAPHRAGM KIT | |
|
 |
Pump cover kit (17,18,19) | ||
|
Cover Kit, Pump | ||
| 1 | Nozzle assy | ||
| 2 | Plug | |
|
| 2 | Plug, Welch | |
|
| 3 | Strainer | |
|
| 5 | Metering spring | |
|
| 6 | Pin | |
|
| 7 | Metering lever | |
|
| 8 | Metering lever screw | ||
| 8 | Inlet needle | |
|
| 8 | Inlet needle | |
|
| 9 | Metering gasket | |
|
| 10 | Shaft Ass'y, Throttle | ||
| 10 | Metering diaphragm assy | |
|
| 11 | Lever, Throttle | ||
| 11 | Base primer assy | ||
| 12 | Syringe | ||
| 12 | Primer bulb | ||
| 12 | Spring, Throttle Return | ||
| 13 | Valve, Throttle | ||
| 13 | Retainer | ||
| 14 | Binding screw vs serration | ||
| 15 | Pump diaphragm | |
|
| 16 | Pump gasket | |
|
| 17 | COVER PUMP | |
|
| 17 | Pump cover | |
|
| 18 | Gasket, Pump | |
|
| 18 | Adjustment screw spring | |
|
| 19 | Idle speed screw | |
|
| 20 | Truss head screw | ||
| 21 | Throttle shaft assy | ||
| 22 | E-ring | ||
| 23 | Throttle valve | ||
| 23 | Post | ||
| 24 | Valve screw | ||
| 25 | Return spring | ||
| 26 | Throttle lever | ||
| 26 | Spring, Adjust Screw | |
|
| 27 | Screw, Main Mixture | ||
| 27 | Post | ||
| 28 | Screw, Idle Mixture | ||
| 28 | Binding head screw | ||
| 29 | Screw, Throttle Adjust | |
|
| 29 | High speed screw | ||
| 30 | Low speed screw | ||
| 41 | Screw (Throttle Valve) | ||
| 46 | Screw (Throttle Lever) |
