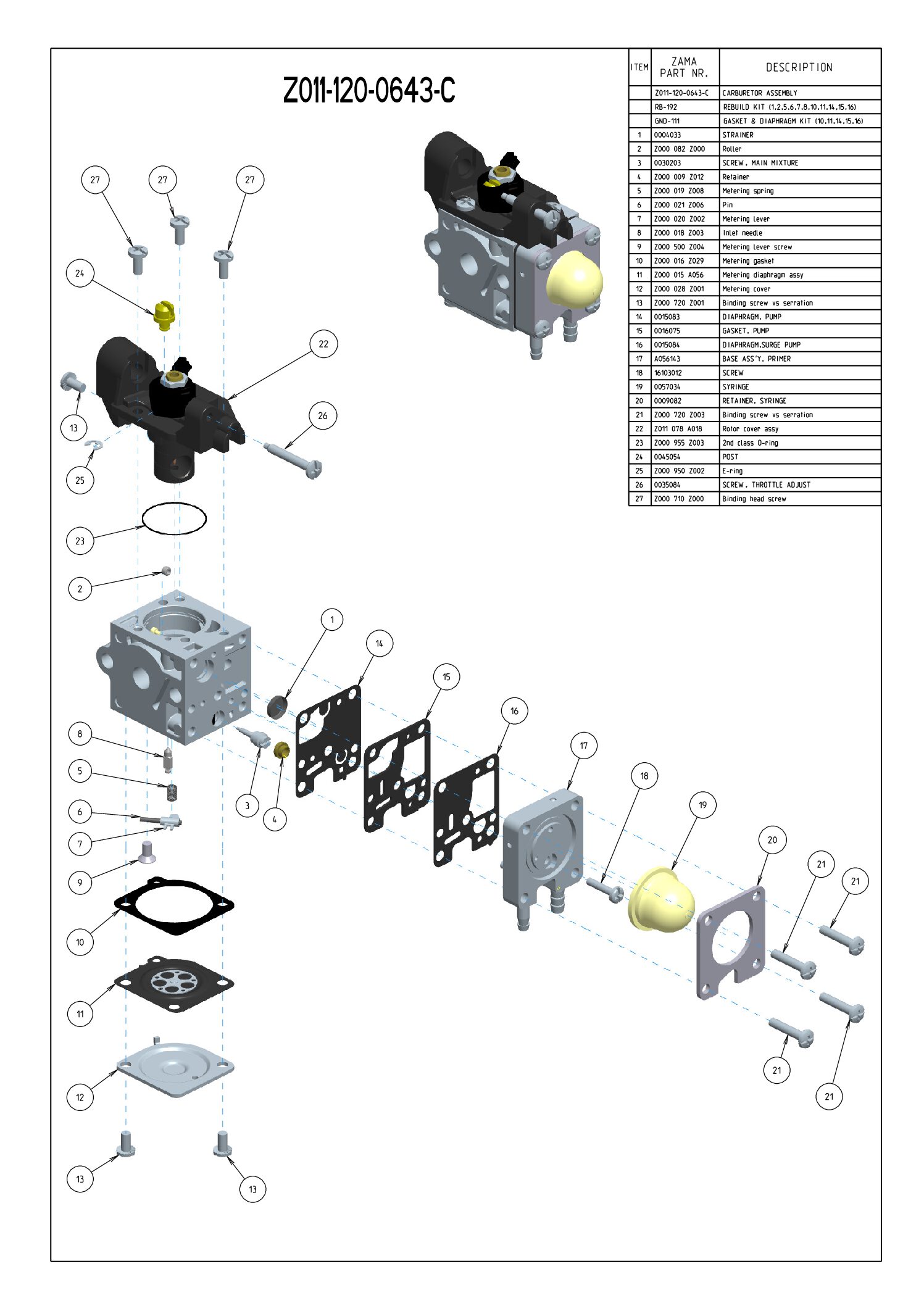

参照 |
部品名 |
|
モデル部品 |
|
VENTURI |
|
|
 |
Rebuild Kit |
|
|
 |
Gasket & Diaphragm Kit |
|
|
| 1 |
Strainer |
|
|
| 2 |
Roller |
|
|
| 3 |
Screw, Main Mixture |
|
|
| 4 |
Retainer |
|
|
| 5 |
Metering spring |
|
|
| 6 |
Pin |
|
|
| 7 |
Metering lever |
|
|
| 8 |
Inlet needle |
|
|
| 9 |
Metering lever screw |
|
|
| 10 |
Metering gasket |
|
|
| 11 |
Metering diaphragm assy |
|
|
| 12 |
Metering cover |
|
|
| 13 |
Binding screw vs serration |
|
|
| 14 |
Diaphragm, Pump |
|
|
| 15 |
Gasket, Pump |
|
|
| 16 |
DIAPHRAGM SURGE PUMP |
|
|
| 17 |
Base Ass'y, Primer |
|
|
| 18 |
SCREW |
|
|
| 19 |
Syringe |
|
|
| 20 |
Retainer, Syringe |
|
|
| 21 |
Binding screw vs serration |
|
|
| 22 |
Rotor cover assy |
|
|
| 23 |
2nd class O-ring |
|
|
| 24 |
POST |
|
|
| 25 |
E-ring |
|
|
| 26 |
SCREW THROTTLE ADJUST |
|
|
| 27 |
Binding head screw |
|
|
