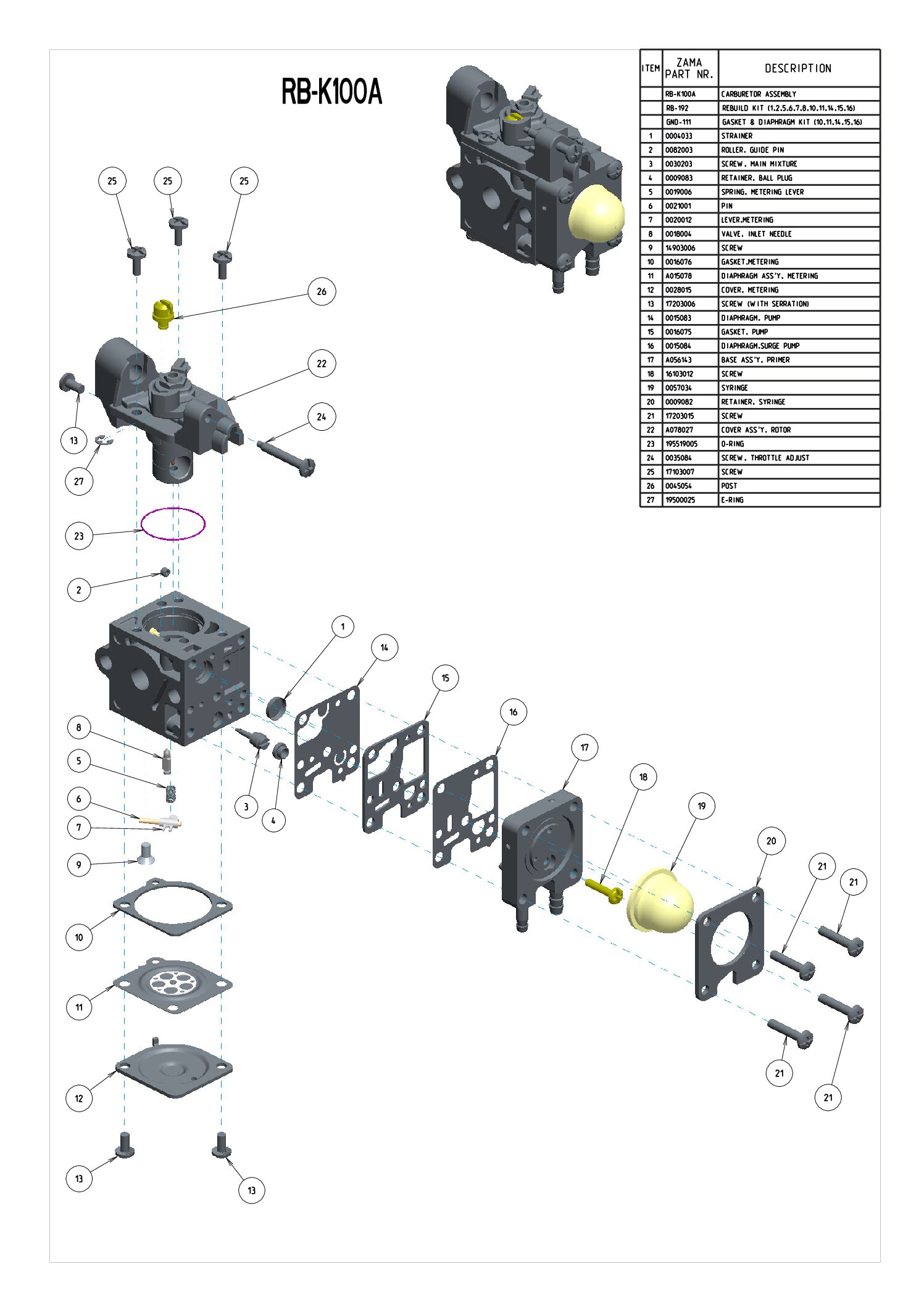

参照 |
部品名 |
|
モデル部品 |
|
Venturi |
|
|
 |
Rebuild Kit |
|
|
 |
Gasket & Diaphragm Kit |
|
|
| 1 |
Strainer |
|
|
| 2 |
Roller, Guide |
|
|
| 3 |
Retainer, Syringe |
|
|
| 5 |
Diaphragm, Pump |
|
|
| 6 |
Diaphragm, Surge |
|
|
| 7 |
Screw (Pin) |
|
|
| 7 |
Gasket, Pump |
|
|
| 8 |
Gasket, Metering Chamber |
|
|
| 13 |
Diaphragm Ass'y, Metering |
|
|
| 15 |
Post |
|
|
| 17 |
Syringe |
|
|
| 17 |
Base Ass'y, Primer |
|
|
| 20 |
Valve, Inlet Needle |
|
|
| 21 |
Spring, Metering Lever |
|
|
| 22 |
Lever, Metering |
|
|
| 22 |
Cover Ass'y, Rotor |
|
|
| 23 |
Screw, Throttle Adjust |
|
|
| 23 |
Pin |
|
|
| 24 |
Screw (Base Ass'y, Primer) |
|
|
| 24 |
Cover, Metering Chamber |
|
|
| 29 |
O-Ring (Rotor Cover) |
|
|
| 33 |
Retainer, Plug Ball |
|
|
| 34 |
Adjust Screw, Main Mixture |
|
|
| 44 |
Screw (Metering Cover) |
|
|
| 44 |
Screw (Metering Cover) |
|
|
| 51 |
Screw, Retainer |
|
|
| 52 |
E-Ring (Choke Shaft) |
|
|
