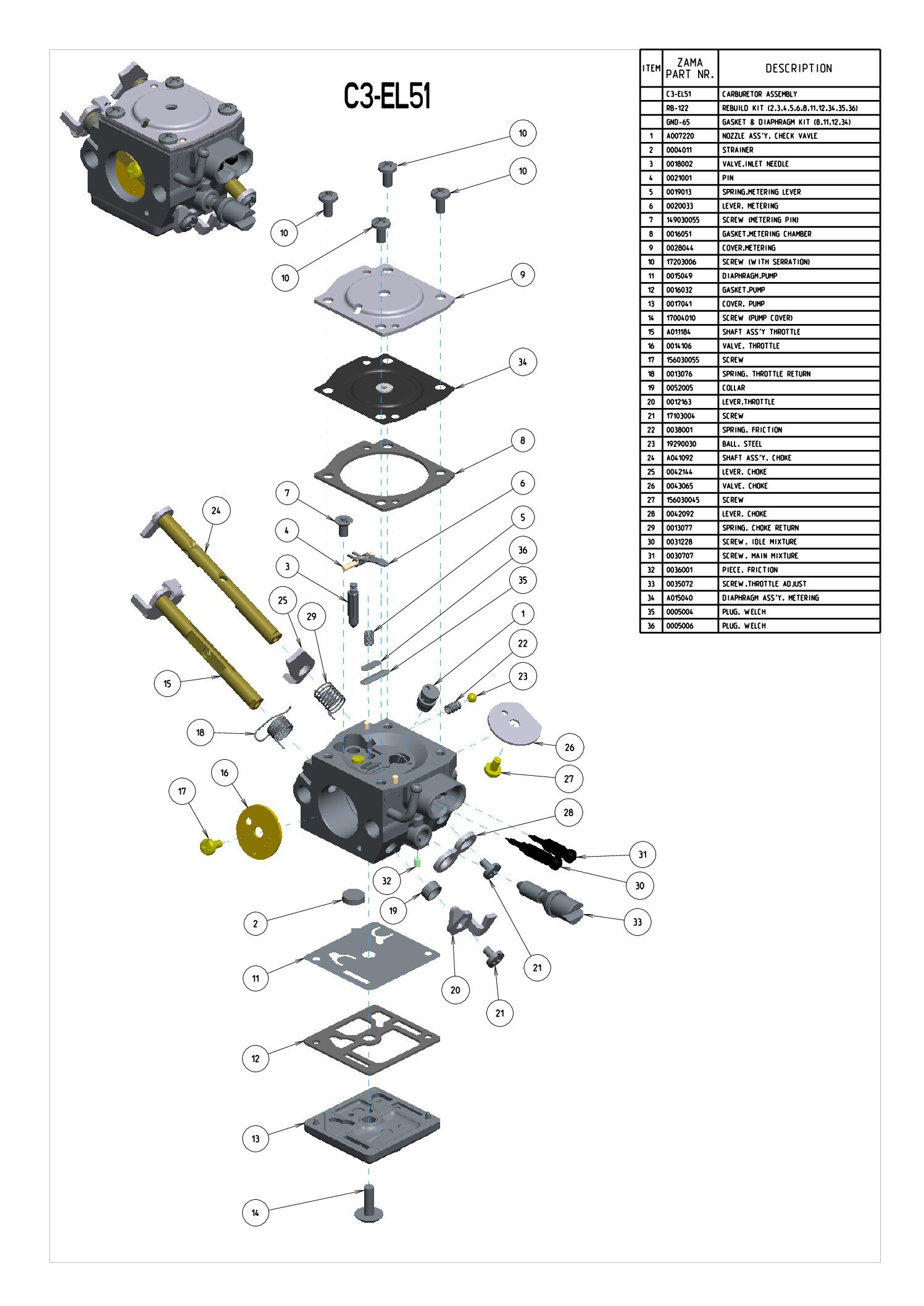

参照 |
部品名 |
|
モデル部品 |
|
Venturi |
|
|
 |
Rebuild Kit |
|
|
 |
Gasket & Diaphragm Kit |
|
|
| 1 |
Strainer |
|
|
| 3 |
Valve, Inlet Needle |
|
|
| 4 |
Plug, Welch |
|
|
| 4 |
Plug, Welch |
|
|
| 5 |
Nozzle Ass'y, Check Valve |
|
|
| 6 |
Shaft Ass'y, Throttle |
|
|
| 7 |
Lever, Throttle |
|
|
| 8 |
Spring, Throttle Return |
|
|
| 9 |
Spring, Choke Return |
|
|
| 10 |
Valve, Throttle |
|
|
| 11 |
Diaphragm Ass'y, Metering |
|
|
| 12 |
Diaphragm, Pump |
|
|
| 13 |
Gasket, Metering Chamber |
|
|
| 14 |
Gasket, Pump |
|
|
| 16 |
Cover, Pump |
|
|
| 18 |
Spring, Metering Lever |
|
|
| 19 |
Lever, Metering |
|
|
| 21 |
Cover, Metering Chamber |
|
|
| 23 |
Pin |
|
|
| 25 |
Screw, Idle Mixture |
|
|
| 26 |
Valve, Choke |
|
|
| 26 |
Screw, Throttle Adjust |
|
|
| 29 |
Shaft Ass'y, Choke |
|
|
| 30 |
Lever, Choke |
|
|
| 30 |
Piece, Friction |
 |
|
| 31 |
Lever, Choke |
|
|
| 31 |
Spring, Friction |
|
|
| 31 |
Screw, Main Mixture |
|
|
| 34 |
Collar, Choke Shaft |
|
|
| 35 |
Screw (Pin) |
|
|
| 41 |
Screw (Throttle Valve) |
|
|
| 44 |
Screw (Metering Cover) |
|
|
| 45 |
Screw (Pump Cover) |
|
|
| 46 |
Screw (Throttle Lever) |
|
|
| 47 |
Ball, Steel |
|
|
