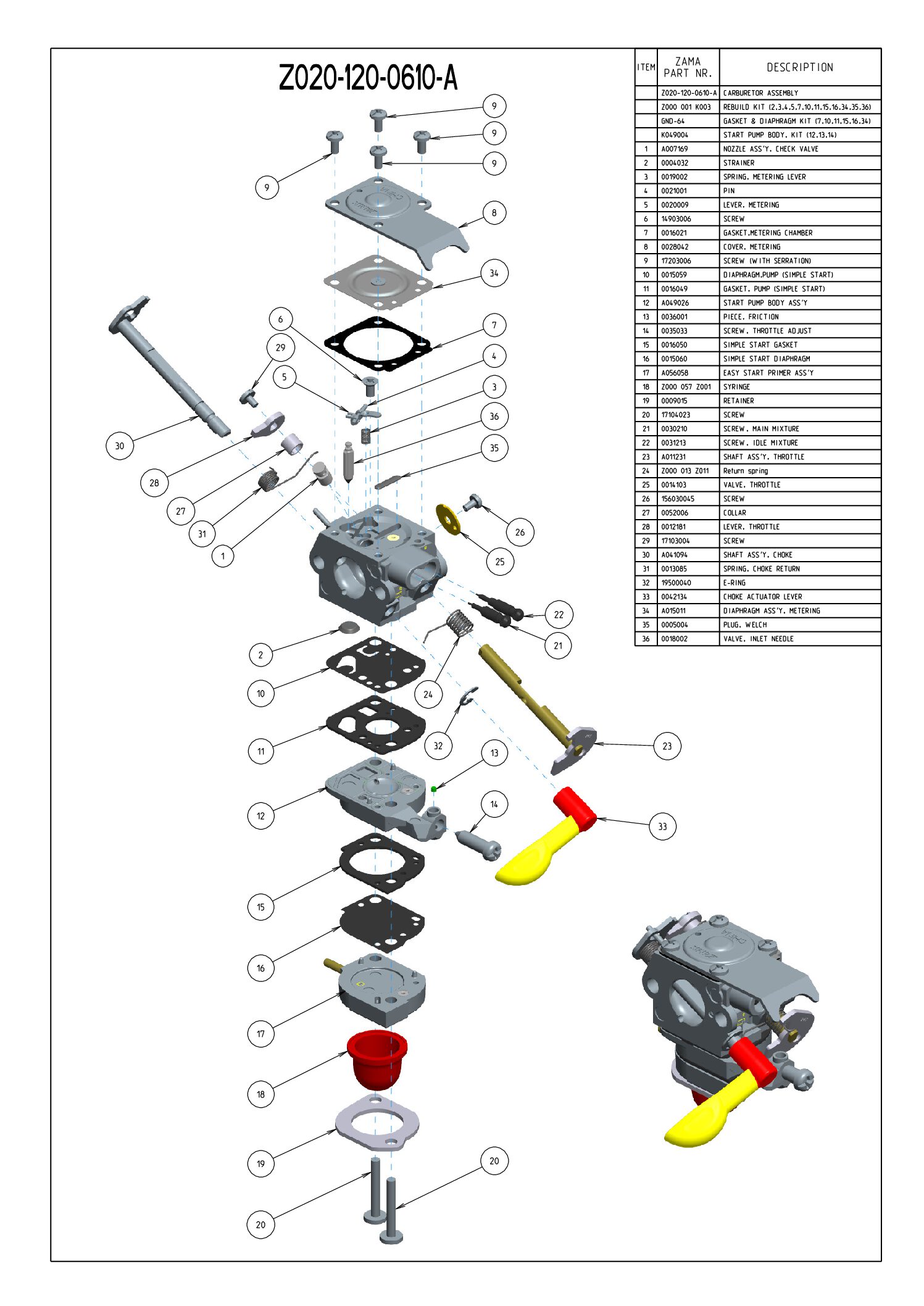

参考 |
零件名称 |
|
型号零件 |
|
Venturi |
|
|
 |
REBUILD KIT |
|
|
 |
Gasket & Diaphragm Kit |
|
|
 |
Start Kit, Pump |
|
|
| 1 |
Strainer |
|
|
| 2 |
Nozzle Ass'y, Check Valve |
|
|
| 3 |
Valve, Inlet Needle |
|
|
| 4 |
Plug, Welch |
|
|
| 5 |
Lever, Metering |
|
|
| 7 |
Screw (Pin) |
|
|
| 9 |
Cover, Metering Chamber |
|
|
| 12 |
Valve, Throttle |
|
|
| 12 |
Diaphragm, Pump |
|
|
| 14 |
Diaphragm, Start Pump |
|
|
| 14 |
Diaphragm Ass'y, Metering |
|
|
| 16 |
Gasket, Pump |
|
|
| 17 |
Gasket, Start Pump |
|
|
| 17 |
Gasket, Metering Chamber |
|
|
| 17 |
Retainer, Syringe |
|
|
| 18 |
Cover, Starter Pump |
|
|
| 18 |
SYRINGE |
|
|
| 21 |
Spring, Metering Lever |
|
|
| 23 |
Pin |
|
|
| 23 |
Shaft Ass'y, Throttle |
|
|
| 26 |
Screw, Main Mixture |
|
|
| 26 |
Return spring |
|
|
| 27 |
Screw, Idle Mixture |
|
|
| 29 |
Screw, Throttle Adjust |
|
|
| 30 |
Piece, Friction |
|
|
| 30 |
Lever, Throttle |
|
|
| 31 |
E-Ring |
|
|
| 33 |
Lever, Choke |
|
|
| 34 |
Shaft Ass'y, Choke |
|
|
| 34 |
Spring Choke Return |
|
|
| 37 |
Collar |
|
|
| 41 |
Screw (Throttle Valve) |
|
|
| 41 |
Base Ass'y, Primer |
|
|
| 44 |
Screw (Metering Cover) |
|
|
| 46 |
Screw (Throttle Lever) |
|
|
| 48 |
Screw (Pump Cover) |
|
|
